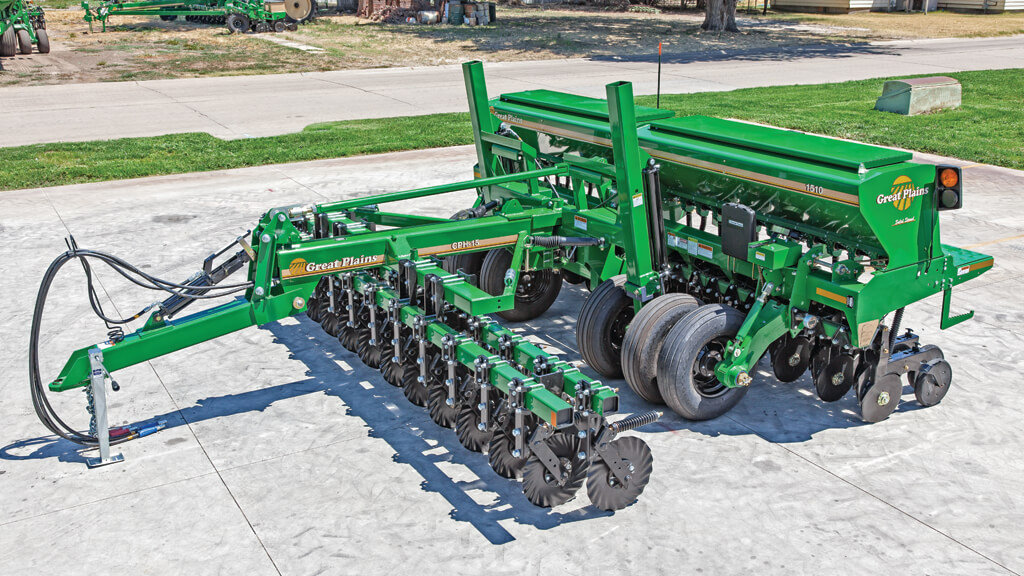

New123-Point Linkage Centre Pivot Hitch
AHS Group·NSW
3 photos supplied by AHS Group and displayed from their website. See the original listing →
About this truck
AHS Group has this 3-Point Linkage Centre Pivot Hitch available at NSW.
AHS Group has not published a price for this truck — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | 3-Point |
| Model | Linkage Centre Pivot Hitch |
| Condition | Used |
| Name | CPH12 |
| Coulter Spacing | 152 mm |
| Coulter | 457 mm |
| Coulter Pre Load | 203 kg |
| Coulter Depth Min. | 0 mm |
| Coulter Depth Max. | 152 mm |
| Tyre Size | 9.5L x 381 mm |
| Weight Approx. Min. | 1,755 kg |
| Weight Approx. Max. | 1,932 kg |
| Working Width | 3,660 mm |
| Transport Width | 3,710 mm |
| Transport Length | 5,385 mm |
| Transport Height | 2,718 mm |
| Primary Design | No-till Centre |
| Tractor Attachment | Drawbar |
| Hydraulic Weight Transfer | Standard |
| Centre Pivot Design | Standard |
| Coulters | 24 |
| Transport Lock | done |
| Pivot Stabiliser Cylinders | done |
| Ball Joint Hitch | done |
| Heavy Duty Pivot With Leaf Springs | done |
| CAT II Hitch | done |
| Adjustable Level Link | done |
| Spring Steel Coulter Mounting Bars | done |
| Heavy-duty Coil Springs On Coulter | done |
| Heavy-duty Brace Package | close |
| Built-in Weight Bracket On Main Frame | done |
| CPH Reinforcement | done |
| Turbo Coulter | 457mm Diameter | 16mm Wide |
| Hydraulic Bypass Kit | done |
| Location | NSW |
| Category | Trucks |

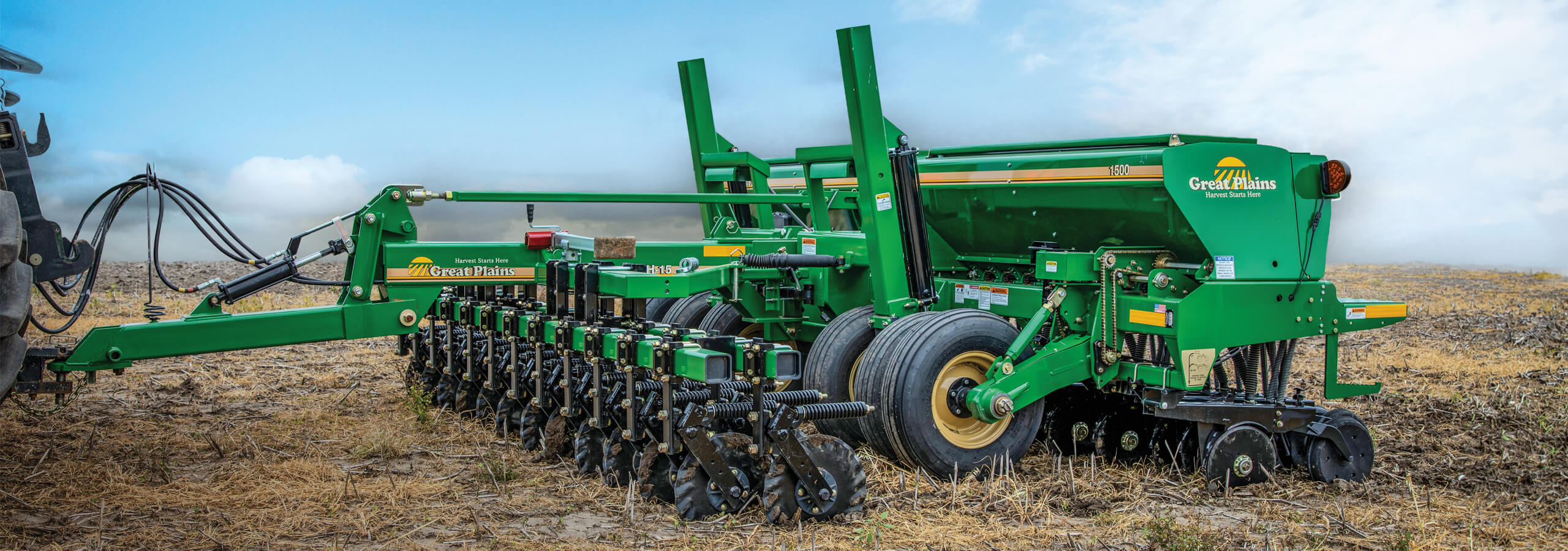

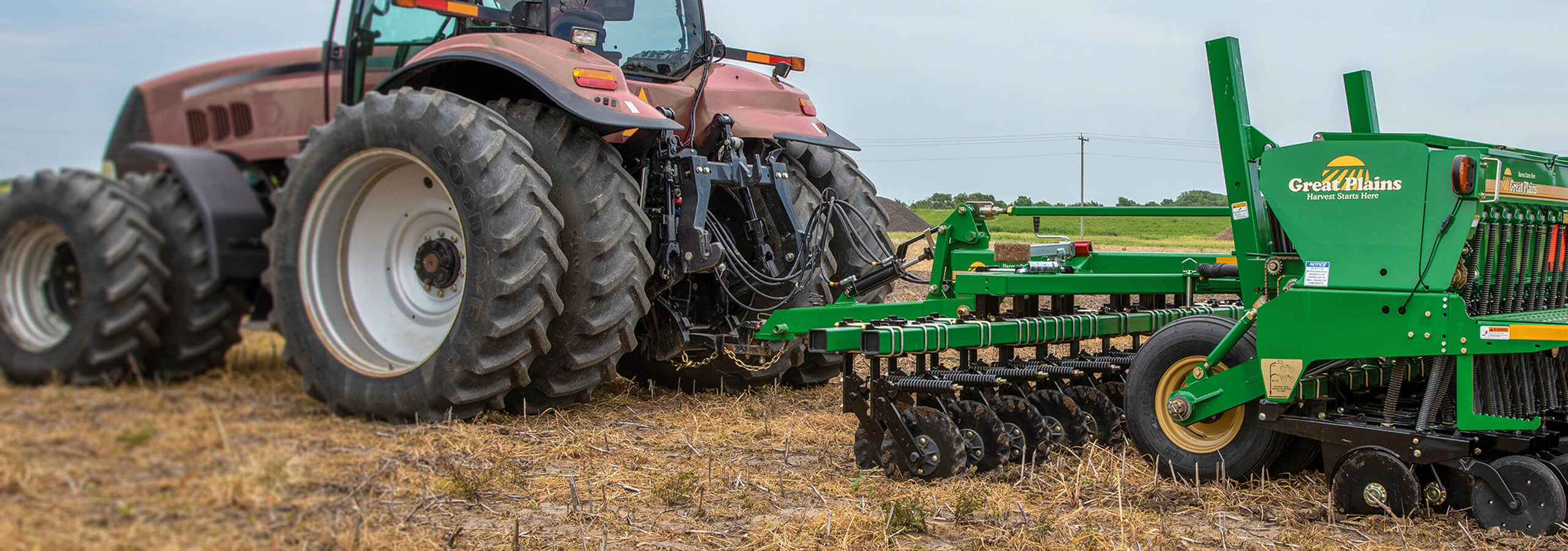

The Great Plains Centre Pivot Hitch (CPH) converts 1200, 1500, or 2000 drills into a triple disc no-till machine equipped with coulters and adjustable down pressure. The Centre Piv… Full description on the dealer's site →
