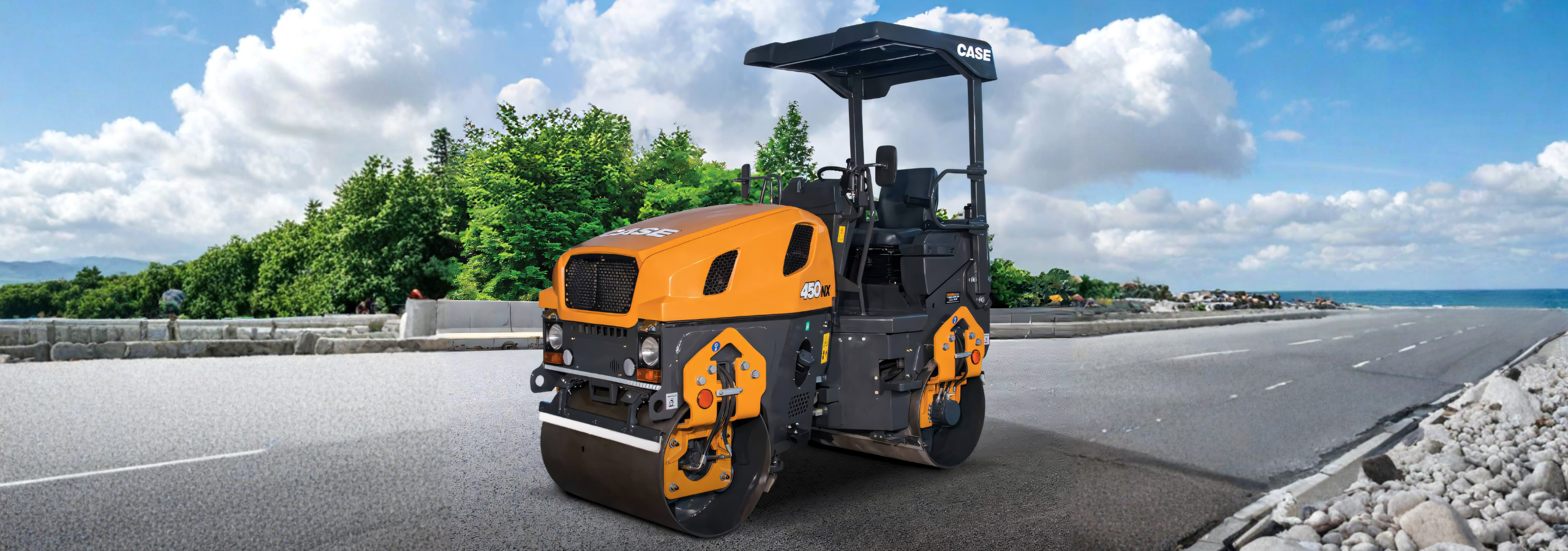

Used4CASE 450NX Tandem Drum Roller
About this roller
AHS Group has this Case 275DI available at NSW.
As listed, it has an operating weight of 2,900 kg.
AHS Group has not published a price for this roller — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | Case |
| Model | 275DI |
| Condition | Used |
| Name | 450NX |
| Engine Model | 275DI |
| Cylinders | N/A |
| Type of Cooling | Liquid Cooled |
| Displacement | 2.048 L |
| Air Intake | N/A |
| Fuel Injection | N/A |
| Max Gross Power @2200rpm (ISO 14396) | 18.5 kW (24.8 hp) |
| Max Gross Torque @1400 rpm (ISO 14396) | 130 Nm |
| After-treatment | N/A |
| Max Travel Speed | 9.5 kph |
| Max Working Speed | N/A |
| Propulsion on Front & Rear Drum | N/A |
| Max Gradeability | 35 % |
| Steering | Hydrostatic (Center Point Articulation) |
| Steering Angle | ±27° |
| Turning Radius | 3.32 M |
| Oscillation angle (degree) | ±10° |
| Service Brake | Hydrostatic |
| Parking Brake | Spring applied, hydraulically released |
| Operating Weight | 2,900 kg |
| Front Axle Load | 1,480 kg |
| Rear Axle Load | 1,420 kg |
| % Mass on Front | N/A |
| % Mass on Rear | N/A |
| Static Linear Load- Front | 14.8 kg/cm |
| Static Linear Load- Rear | 14.2 kg/cm |
| Articulation on Either Side (deg.) | N/A |
| Inner Turning Radius (m) | N/A |
| Vertical Oscillation Angle (deg.) | N/A |
| Vibration Stage | Two |
| Frequency High - HF | 61 Hz |
| Frequency Low - LF | 46 Hz |
| Amplitude | 0.5 mm |
| Centrifugal Force (Kgf) HF per Drum | 2900/ 28.43 |
| Centrifugal Force (Kgf) LF per Drum | 1652 / 16.20 |
| Maximum applied Force (Kgf) per Drum | 4380 / 42.95 |
| Water Tank - Front/Rear (L) | 150 |
| Fuel Tank | 38 L |
| Engine oil | 5 L |
| Coolant | 6.8 L |
| Hydraulic Tank | 40 L |
| Wheelbase | 1.925 m |
| Overall Width | 1.184 m |
| Drum Diameter - Front/ Rear | 0.7 m |
| Total Machine Height / Transport Height | 2.697 m |
| Height to Top of Seat/ Steering Wheel | 1.827 m |
| Ground Clearance | 0.307 m |
| Total Length | 2.871 m |
| Side Overhang – Drum Edge to Frame | 0.092 m |
| Drum Thickness | 0.012 m |
| Drum Width | 1 m |
| Departure Angle - Front/ Rear | N/A |
| Location | NSW |
| Category | Rollers |
The CASE 450NX delivers powerful compaction in a compact design with a fuel-efficient 3.9L FPT engine, hydrostatic dual-drum drive, and superior visibility. Built for long-term rel… Full description on the dealer's site →
