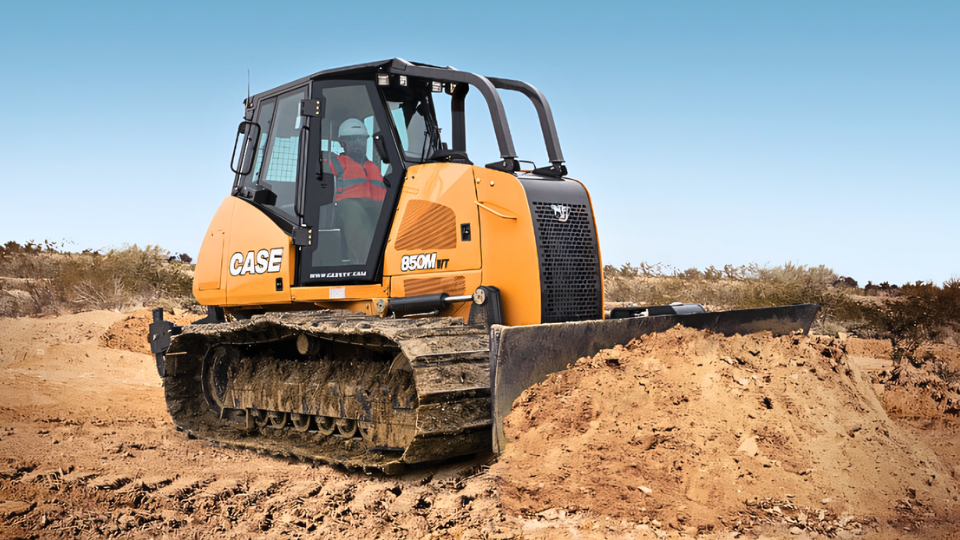

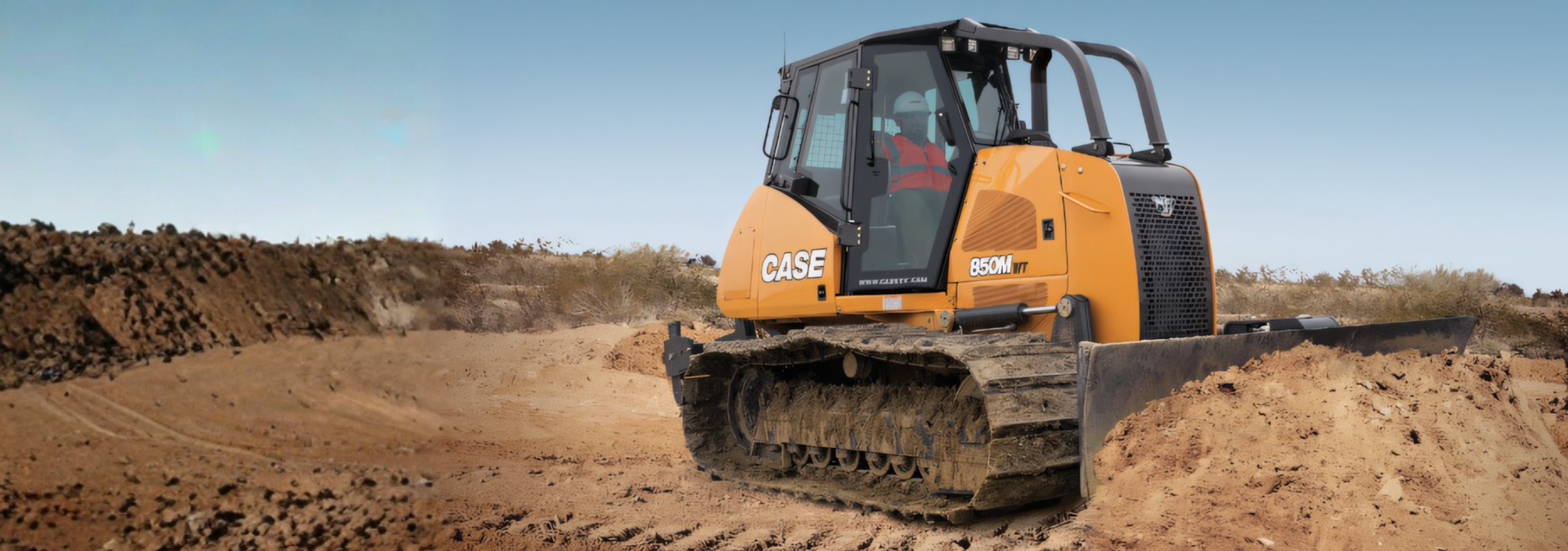

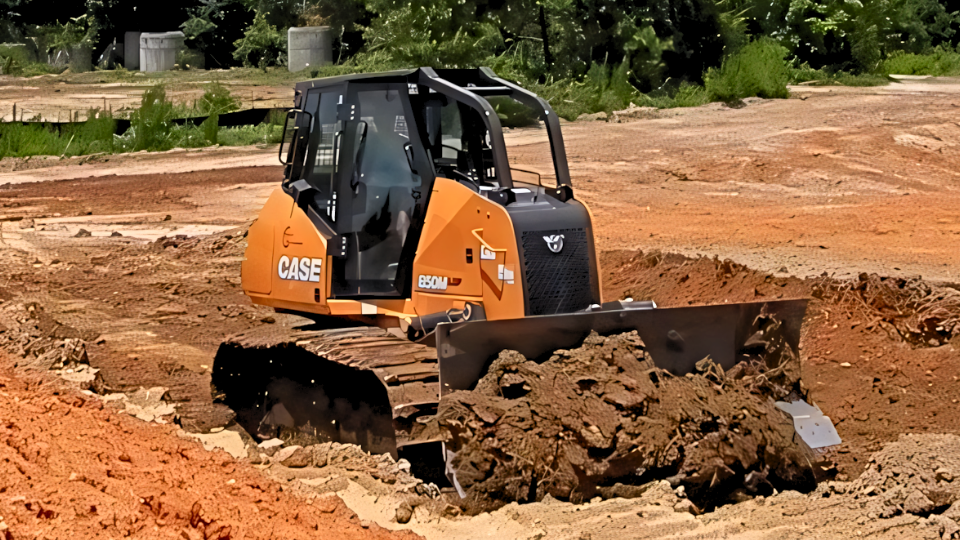

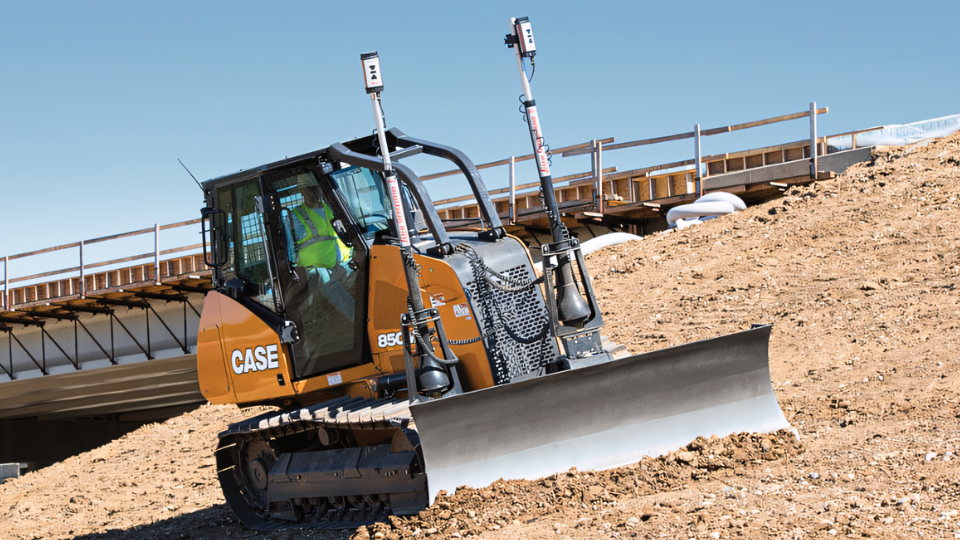

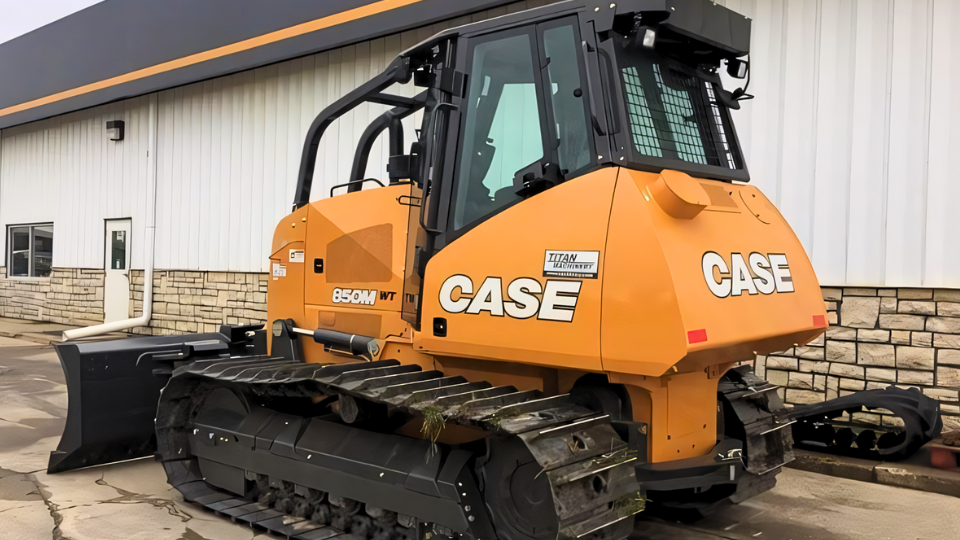

Used7CASE 850M Crawler Dozer
AHS Group·NSW
7 photos supplied by AHS Group and displayed from their website. See the original listing →
About this dozer
This Case FPT F4HFE413P*A008 is listed by AHS Group at NSW.
As listed, it has an operating weight of 10,320 kg.
AHS Group has not published a price for this dozer — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | Case |
| Model | FPT F4HFE413P*A008 |
| Condition | Used |
| Name | 850M |
| Model | FPT F4HFE413P*A008 |
| Engine Displacement | 4.5 L |
| Cylinders | 4 |
| Emissions Certification | Tier 4 Final |
| Fuel System | Common rail |
| Cooling Type | Liquid |
| Rated Engine Speed | 2,000 rpm |
| Gross Horsepower | 90 kW (120.7 hp) |
| Net Horsepower | 84 kW (112.6 hp) |
| Peak Torque | 825 Nm |
| Transmission Type | Dual path hydrostatic |
| Steering Type | Hydrostatic |
| Max Drawbar Pull | 182 kN |
| Travel Speed – Forward | 8.7 km/h |
| Travel Speed – Reverse | 8.7 km/h |
| Alternator | 120 Amp |
| Battery | (2) 12-volt, low-maintenance 925 cold-cranking amps @ -4° F (-20° C) |
| Operating Weight | 10,320 kg |
| Height | 2,794 mm |
| Ground Clearance | 366 mm |
| Overall Length | 5,277 mm |
| Width over tracks | 2,322 mm |
| Pump flow | 78.8 L/min |
| Blade Type | PAT |
| Blade Width | 2845 |
| Blade Height | 910 |
| Blade Capacity (SAE) | 1.8 m³ |
| Blade Pitch Range | 52–60 |
| Max Blade Lift Above Ground | 864 |
| Max Blade Depth Below Ground | 488 |
| Blade Angle (L/R) | 25 |
| Location | NSW |
| Category | Dozers |
The CASE 850M Crawler Dozer delivers 112 HP of smooth hydrostatic power with a Tier 4 Final FPT engine and advanced blade control. Built for reliability, comfort, and fuel efficien… Full description on the dealer's site →
