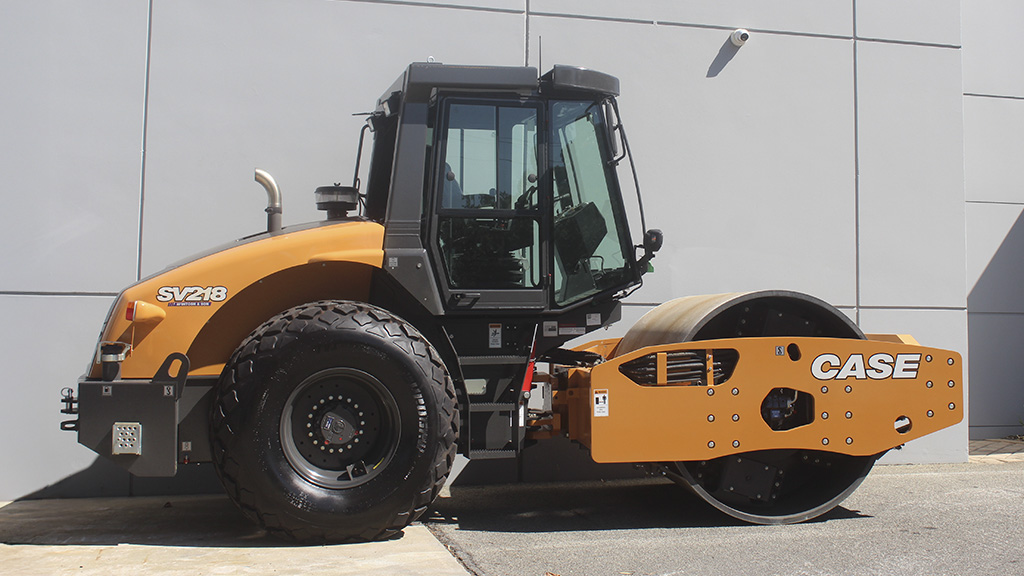

Cummins CASE SV218 Single Drum Roller
About this roller
AHS Group has this Cummins Cummins QSB 4.5-C160 available at NSW.
AHS Group has not published a price for this roller — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | Cummins |
| Model | Cummins QSB 4.5-C160 |
| Condition | Used |
| Name | SV218 |
| Make & Model | Cummins QSB 4.5-C160 |
| Max Power ISO 3046-1 | 119 kW (159.6 hp) |
| Maximum torque | 624 Nm |
| Emission class | EU Stage IIIA, U .S. EPA Tier 3 |
| Number of Cylinders | 4 |
| System | Hydraulic assisted articulated |
| Fuel tank | 410 L |
| Hydraulic System | 90 L |
| Engine crank Case | 11 L |
| Engine coolant | 32 L |
| Frequency I STD | 28 Hz |
| Frequency I STD PD | 28 Hz |
| Frequency II STD | 35 Hz |
| Frequency II STD PD | 35 Hz |
| Amplitude I STD | 2.2 mm |
| Amplitude I STD PD | 2.2 mm |
| Amplitude II STD | 1.2 mm |
| Amplitude II STD PD | 1.1 mm |
| Centrifugal force I STD | 335 kN |
| Centrifugal force I STD PD | 335 kN |
| Centrifugal force II STD | 260 kN |
| Centrifugal force II STD PD | 260 kN |
| Brakes operating | Hydrostatic |
| Brakes parking | Multiple-disc spring brake |
| Brakes emergency | Multiple-disc spring brake |
| Articulation angle (±) | 36 ° |
| Oscillation angle (±) | 10 ° |
| Location | NSW |
| Category | Rollers |
The CASE SV218 is a high-performance 16.2-tonne compactor built for maximum efficiency and strength on large infrastructure, mining, and road construction projects. Powered by a 4.… Full description on the dealer's site →
