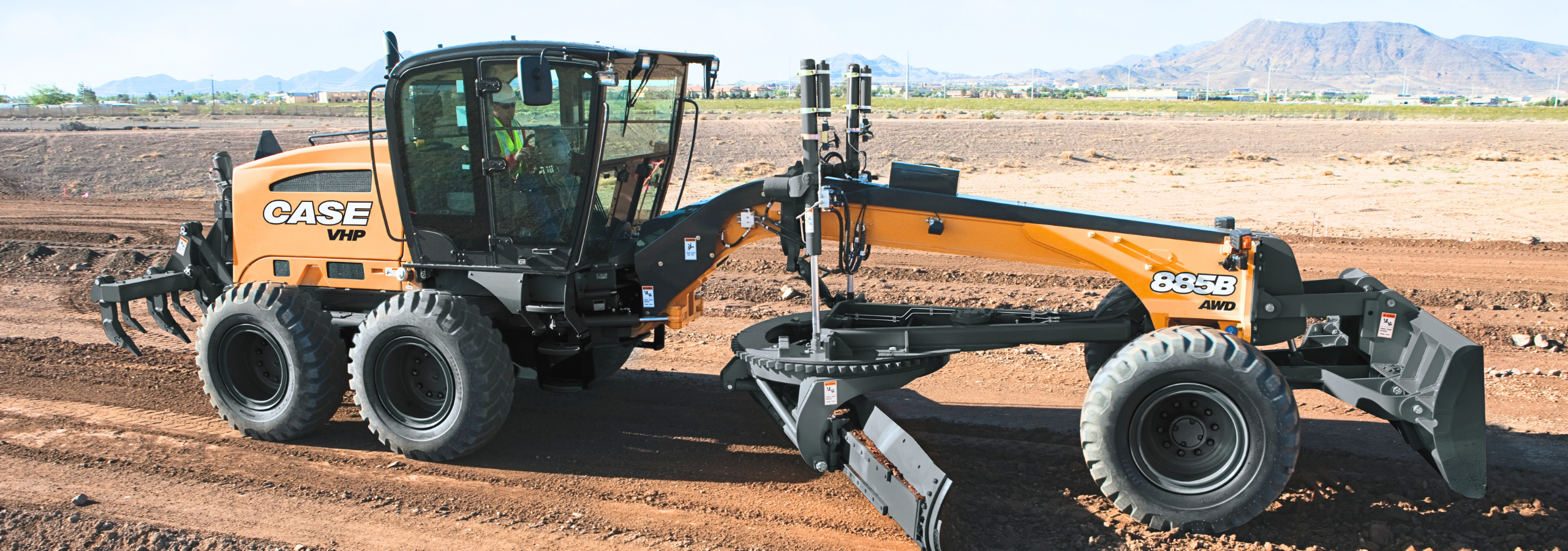

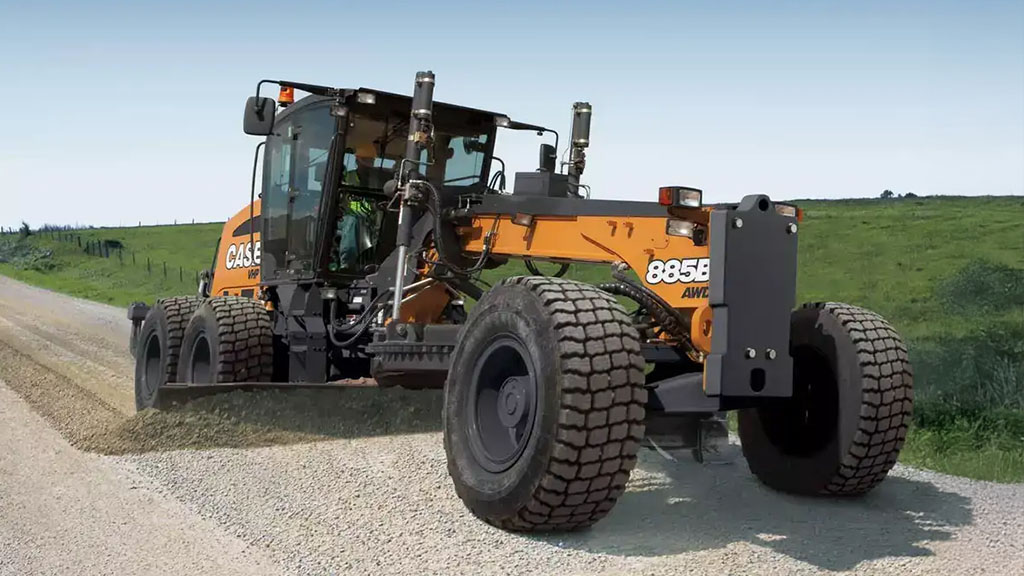

Used10FPT F4HE9687K CASE 885B Series 2 Motor Grader
AHS Group·NSW
2 photos supplied by AHS Group and displayed from their website. See the original listing →
About this grader
This FPT F4HE9687K FPT F4HE9687K is listed by AHS Group at NSW.
AHS Group has not published a price for this grader — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | FPT F4HE9687K |
| Model | FPT F4HE9687K |
| Condition | Used |
| Name | 885B 2 |
| Maximum Power (from 1st to 3rd gear) | 223 hp |
| Maximum Power (from 4th to 6th gear) | 238 hp |
| Governed | - |
| Make & model | FPT F4HE9687K |
| Aftertreatment system | - |
| Donaldson air filter with dust ejector | - |
| Displacement | 6.7 l |
| Number of cylinders | 6, in-line |
| Bore & stroke | 104x132 mm |
| Maximum torque | 924 Nm |
| Converter ratio | - |
| Type | ZF TC LOCK UP 6WG – 210 |
| Axle oscillation | - |
| Wheel lean | - |
| Ground clearance | - |
| Oscillation | 20º in each direction |
| Tandem box Height | 631 mm |
| Tandem box Width | 200.5 mm |
| Tandem box Wall thickness | 19 mm |
| Tandem box Chain pitch | 50.8 mm |
| Tandem wheelbase | 2,204 mm |
| Steering wheel lock. left/right | 4.5°/3.2° |
| L-profile cross section | - |
| Diameter | - |
| Action radius | - |
| Width | 4,267 mm |
| Blade height/thickness | -/22 mm |
| Cutting edge height/thickness | 2, interchangeable |
| Bolt diameter | - |
| Shifting to the right | 686 mm |
| Shifting to the left | 533 mm |
| Max. slope angle right | - |
| Max. slope angle left | - |
| Max. lift height above ground | 444.5 mm |
| Max. scraping depth | 711.2 mm |
| Cutting angle adjustment, hydr | 90° |
| Hydraulic pump | Piston pump, variable displacement pressure and flow compensated, load sensing |
| Max delivery | 186 I/min |
| Max pressure | - |
| Pressure relief setting | 215 bar |
| Front frame | Box section |
| Cross-section | 254 x 298 mm |
| Wall thickness | - |
| Rear frame | Beam (welded) |
| ROPS according to EEC sample testing | - |
| FOPS according to EEC sample testing | - |
| Cab noise level | - |
| External noise level | - |
| Voltage | 24 V |
| Batteries | 2x100 Ah - low maintenance |
| Alternator | 90 A |
| Starter | - |
| Lube oil | 15 l |
| Coolant (Including: cooler and Heater) | 32 l |
| Axle gear | - |
| Tandem | 69 l |
| Worm gear | 2.8 |
| Hydraulic tank | 90 l |
| Hydraulic oil, total | 148 l |
| Fuel tank | 360 l |
| Location | NSW |
| Category | Graders |
The CASE 885B Series 2 grader delivers strong direct drive performance, responsive hydraulic control, a high capacity moldboard and clear operator sight for accurate grading across… Full description on the dealer's site →
