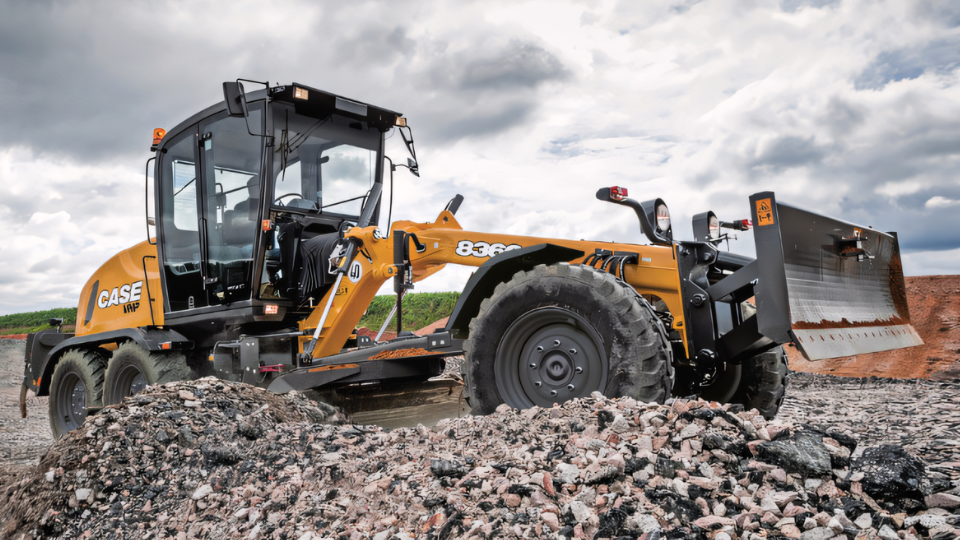

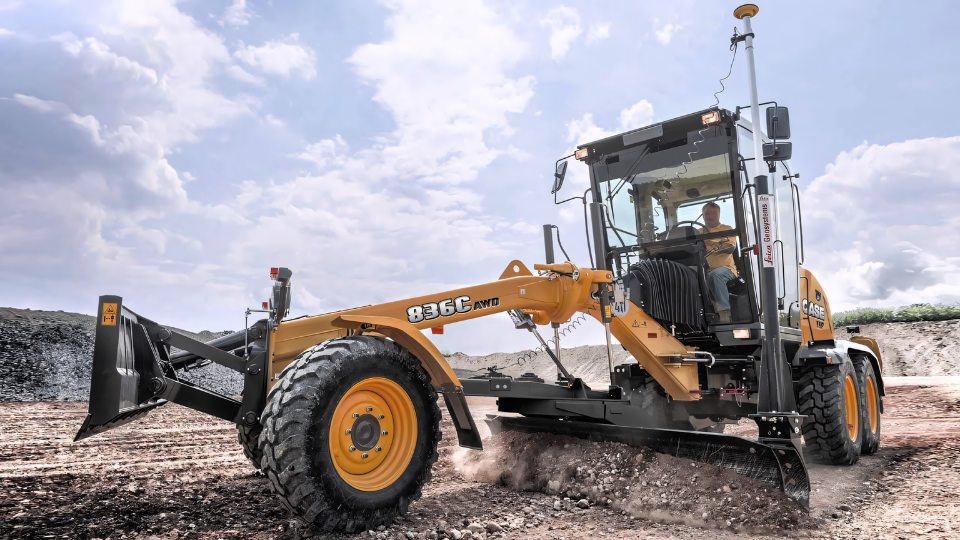

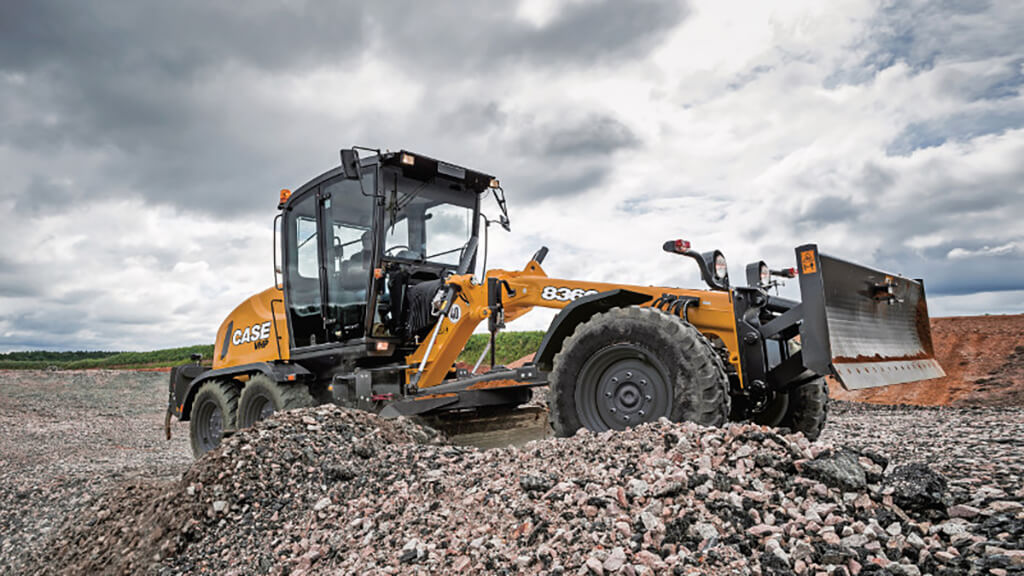

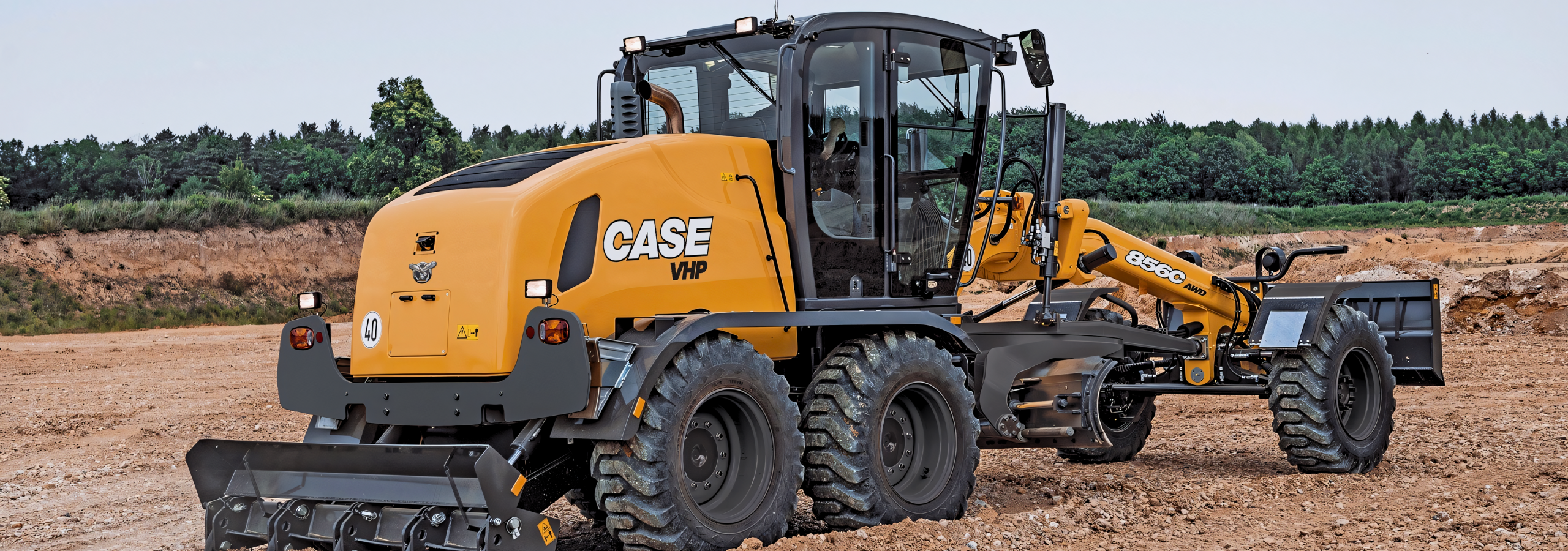

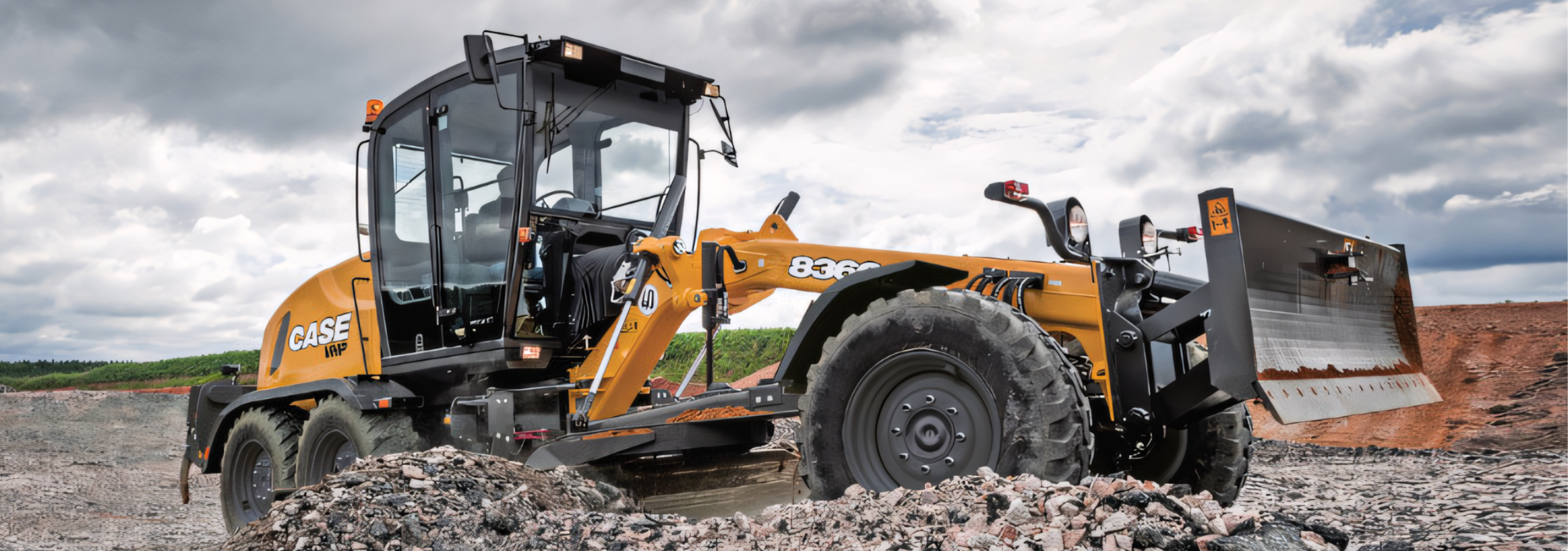

Used7FPT N67 NEF 6 Cyl. CASE 836C Motor Grader
AHS Group·NSW
7 photos supplied by AHS Group and displayed from their website. See the original listing →
About this grader
This FPT N67 NEF 6 Cyl. FPT N67 NEF 6 cyl. is listed by AHS Group at NSW.
AHS Group has not published a price for this grader — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | FPT N67 NEF 6 Cyl. |
| Model | FPT N67 NEF 6 cyl. |
| Condition | Used |
| Name | 836C |
| Maximum Power (from 1st to 3rd gear) | 138 hp |
| Maximum Power (from 4th to 6th gear) | 156 hp |
| Governed | 2,100 rpm |
| Make & model | FPT N67 NEF 6 cyl. |
| Aftertreatment system | DOC+SCRoF |
| Donaldson air filter with dust ejector | std |
| Type | diesel, common rail, dual power, turbocherged and intercooler |
| Displacement | 6.7 l |
| Number of cylinders | 6 |
| Bore & stroke | 104x132 mm |
| Maximum torque | 725 Nm |
| Converter ratio | 1.87: 1 |
| Axle oscillation | ± 15° |
| Wheel lean | ± 21.45° |
| Ground clearance | 485 mm |
| Oscillation | ± 15° |
| Tandem box Height | 599 mm |
| Tandem box Width | 201 mm |
| Tandem box Wall thickness | 20 mm |
| Tandem box Chain pitch | 50.8 mm |
| Tandem wheelbase | 1,241 mm |
| Steering wheel lock. left/right | ± 28° |
| L-profile cross section | 125x120x8 mm |
| Diameter | 1,150 mm |
| Action radius | 360° |
| Width | 2440/3050/3355 mm |
| Blade height/thickness | 526/15 mm |
| Cutting edge height/thickness | 152/19 mm |
| Bolt diameter | 16 mm |
| Shifting to the right | 491 mm |
| Shifting to the left | 708 mm |
| Max. slope angle right | 117° |
| Max. slope angle left | 76° |
| Max. lift height above ground | 394 mm |
| Max. scraping depth | 456 mm |
| Cutting angle adjustment, hydr | 49.5° |
| Hydraulic pump | swash plate, variable displacement |
| Max delivery | 94.5 I/min |
| Max pressure | 200 bar |
| Pressure relief setting | 215 bar |
| Front frame | stiff, welded section from high-strength, fine-grain steel |
| Cross-section | 270 x 270 mm |
| Wall thickness | 12 mm |
| Rear frame | torsion resistant frame |
| ROPS according to EEC sample testing | ISO 3471 |
| FOPS according to EEC sample testing | ISO 3449 |
| Cab noise level | 75 dbA |
| External noise level | 99 dbA |
| Voltage | 24 V |
| Batteries | 2 x 10 Ah |
| Alternator | 90 A |
| Starter | 4 kW (5.4 hp) |
| Lube oil | 12.5 l |
| Coolant (Including: cooler and Heater) | 32 l |
| Axle gear | 31 l |
| Tandem | 120 l |
| Worm gear | 2 |
| Hydraulic tank | 70 l |
| Hydraulic oil, total | 170 l |
| Fuel tank | 278 l |
| AdBlue tank | 54 l |
| Location | NSW |
| Category | Graders |
The CASE 836C motor grader delivers strong grading performance, smooth control and low maintenance operation with a Stage V engine, balanced frame design and advanced hydraulic con… Full description on the dealer's site →
