Home / Search / Loaders / M8540 Narrow ROPS & CAB

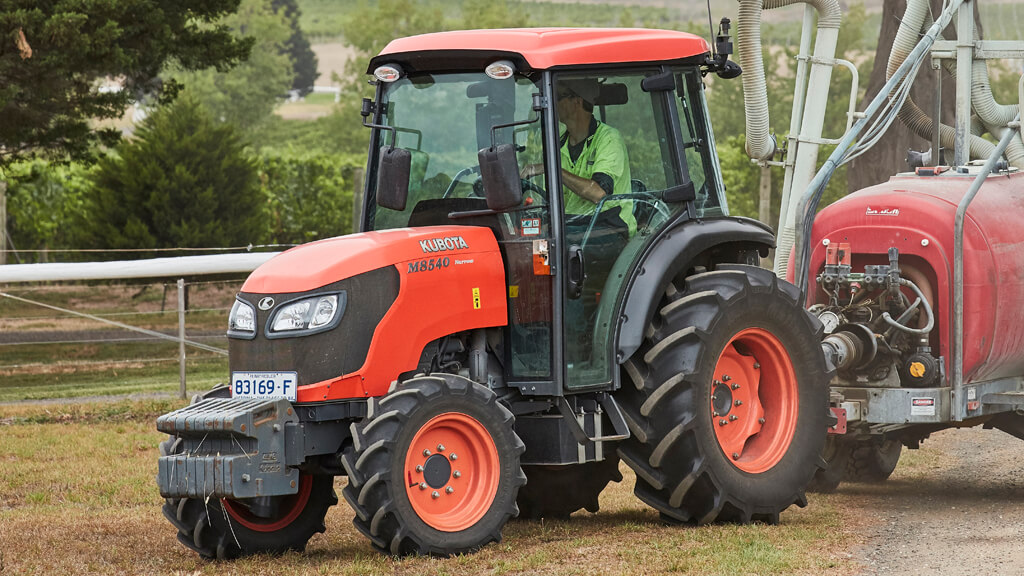

M8540 Narrow ROPS & CAB

AHS Group·NSW
9 photos supplied by AHS Group and displayed from their website. See the original listing →

About this wheel loader

AHS Group has this M8540 Kubota V3800 available at NSW.

As listed, it has a synchronized transmission.

AHS Group has not published a price for this wheel loader — it is listed as price on application, so you will need to contact them for a figure.

Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.

Specifications

MakeM8540
ModelKubota V3800
ConditionUsed
NameM8540DCN
Fuel TypeDiesel
Cylinders4
Engine ModelKubota V3800
Engine Gross84 hp
PTO75 hp
Displacement3,769 cc
Fuel Tank Capacity78 l
Rated Speed2,600 rpm
TransmissionSynchronized
Ranges3 Range
Gears15F
Drive Method4WD
BrakesWet Disc
PTO 5401,000 rpm
Hydraulic Pump Output61 l/min
3-Point HitchCategory II
Rear Linkage Lift Capacity2,300 kg
SteeringHydraulic Power Steering
AGdone
Minimum Low Speed0.4 km/h
Maximum High Speed34.8 km/h
Length3,680 mm
Width1,440 mm
Height2,260 mm
Wheelbase1,635 mm
Ground Clearance380 mm
Turning Radius3.5 m
Tractor Weight2,410 kg
LocationNSW
CategoryLoaders

The hydraulics on the M-Series are state-of-the- art. External hydraulic cylinders improve the lifting power and offer easier maintenance. The M8540 offers a large pump capacity of… Full description on the dealer's site →
