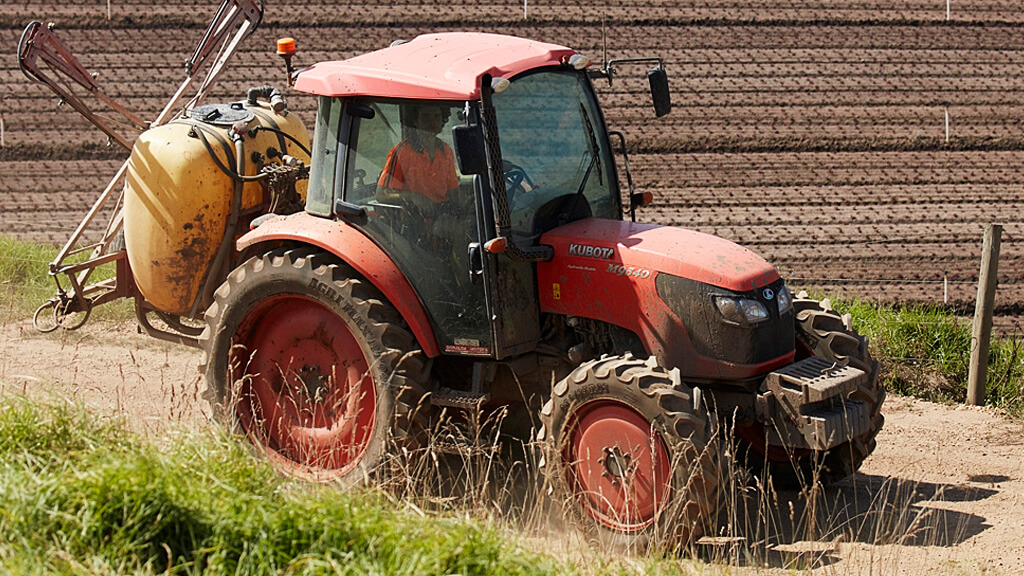

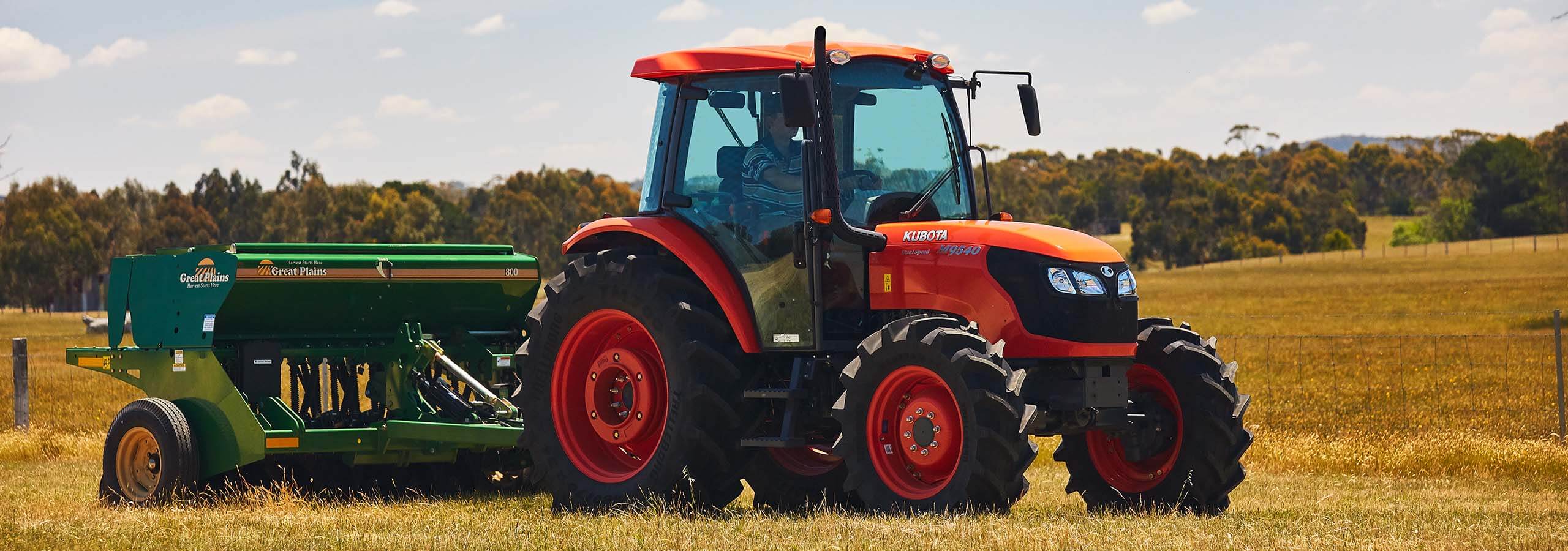

New6M9540 ROPS & Cab
AHS Group·NSW
12 photos supplied by AHS Group and displayed from their website. See the original listing →
About this tractor
This M9540 Kubota V3800 is listed by AHS Group at NSW.
As listed, it has a synchronized transmission.
AHS Group has not published a price for this tractor — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | M9540 |
| Model | Kubota V3800 |
| Condition | Used |
| Name | M9540DHC |
| Fuel Type | Diesel |
| Cylinders | 4 |
| Engine Model | Kubota V3800 |
| Engine Gross | 94.5 hp |
| PTO | 84 hp |
| Displacement | 3,769 cc |
| Fuel Tank Capacity | 110 l |
| Rated Speed | 2,600 rpm |
| Transmission | Synchronized |
| Ranges | 3 Range |
| Gears | 18F |
| Drive Method | 4WD |
| Brakes | Wet Disc |
| PTO 540 | 1,000 rpm |
| Hydraulic Pump Output | 64.3 l/min |
| 3-Point Hitch | Category II |
| Rear Linkage Lift Capacity | 3,900 kg |
| Steering | Hydraulic Power Steering |
| AG | done |
| Minimum Low Speed | 0.42 km/h |
| Maximum High Speed | 33.7 km/h |
| Length | 3,760 mm |
| Width | 1,980 mm |
| Height | 2,570 mm |
| Wheelbase | 2,250 mm |
| Ground Clearance | 465 mm |
| Turning Radius | 4.2 m |
| Tractor Weight | 2,800 kg |
| Location | NSW |
| Category | Tractors |
Simple to operate yet incredibly powerful, the economical M Series tractor range is ideal for a wide variety of applications from property maintenance to commercial landscaping and… Full description on the dealer's site →
