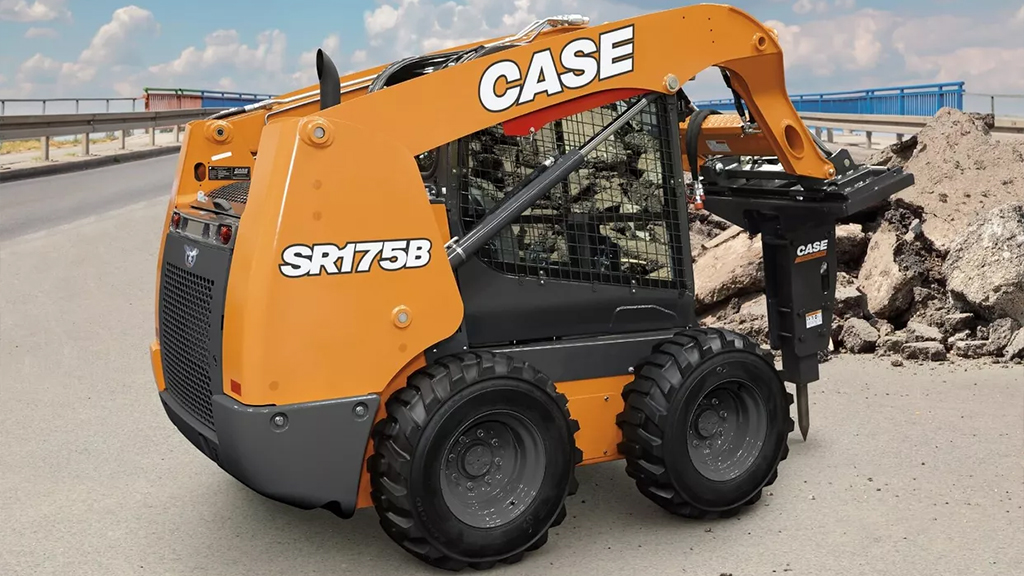

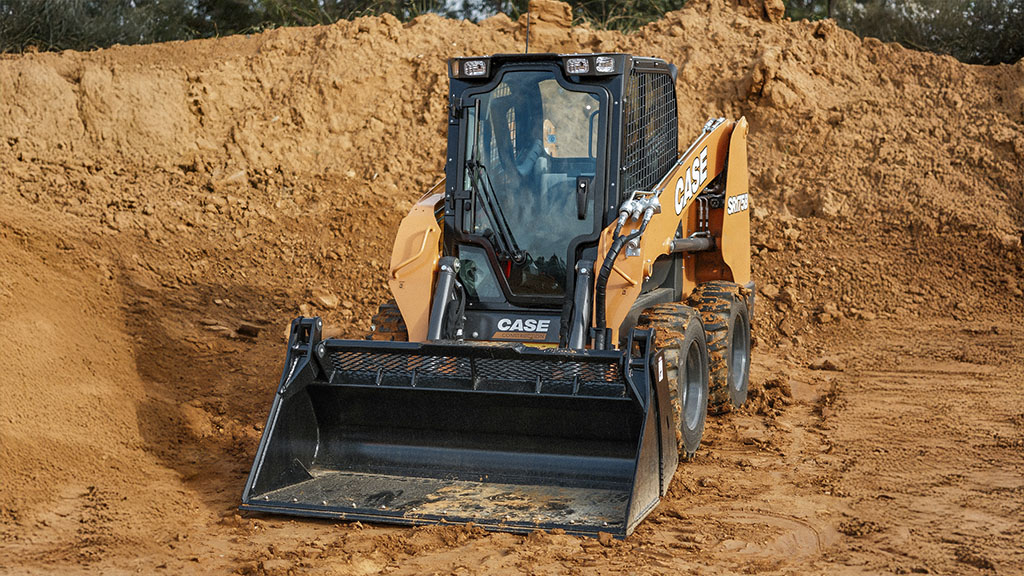

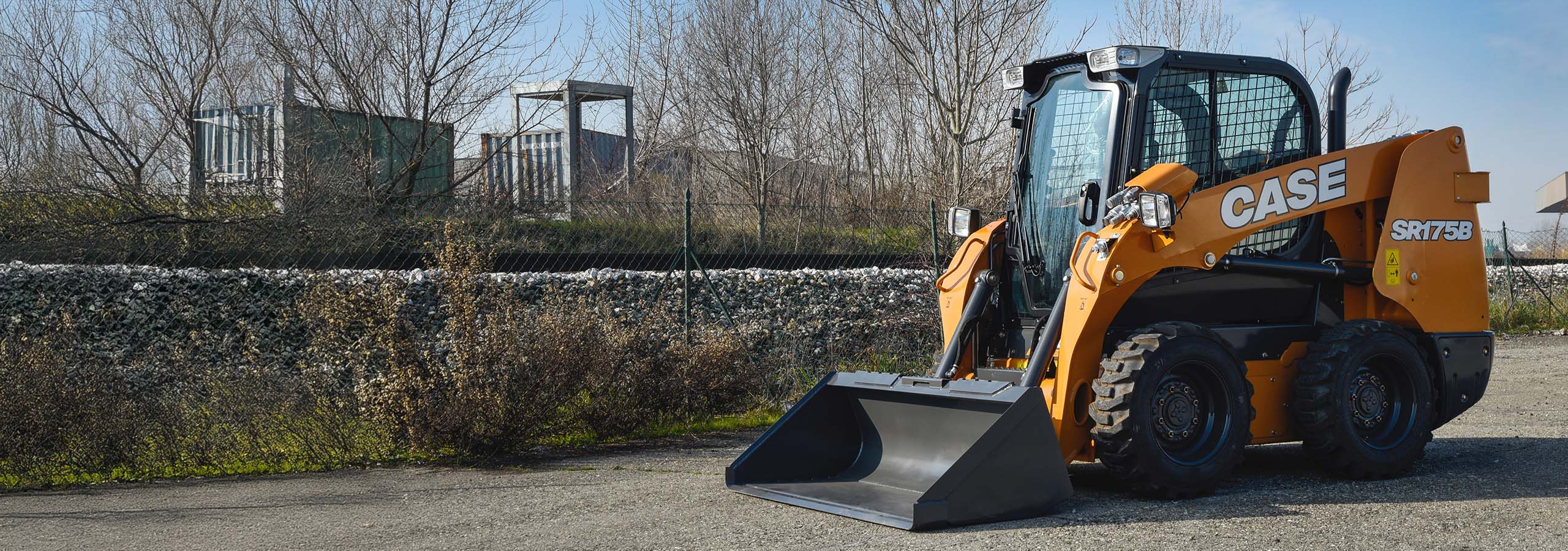

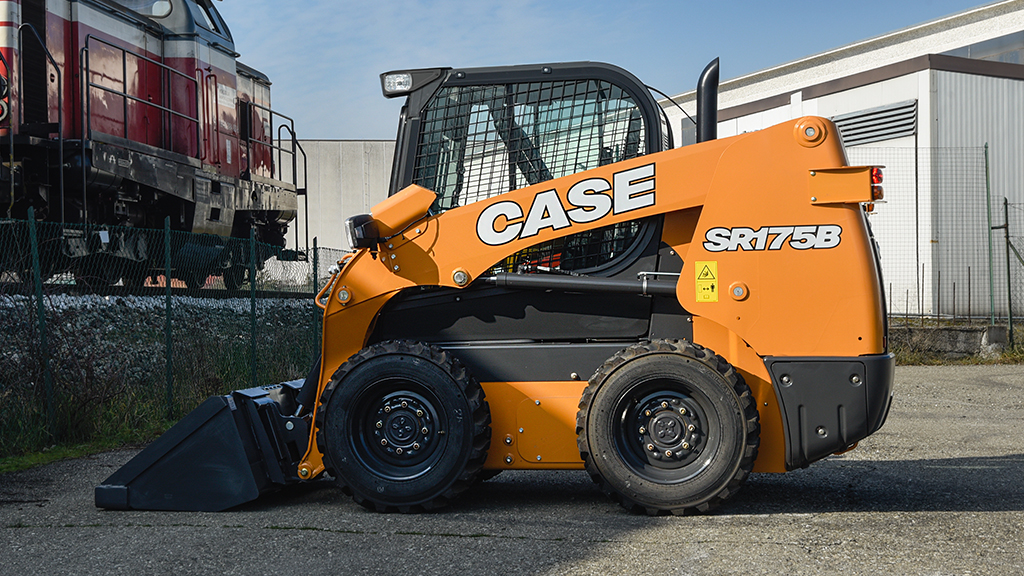

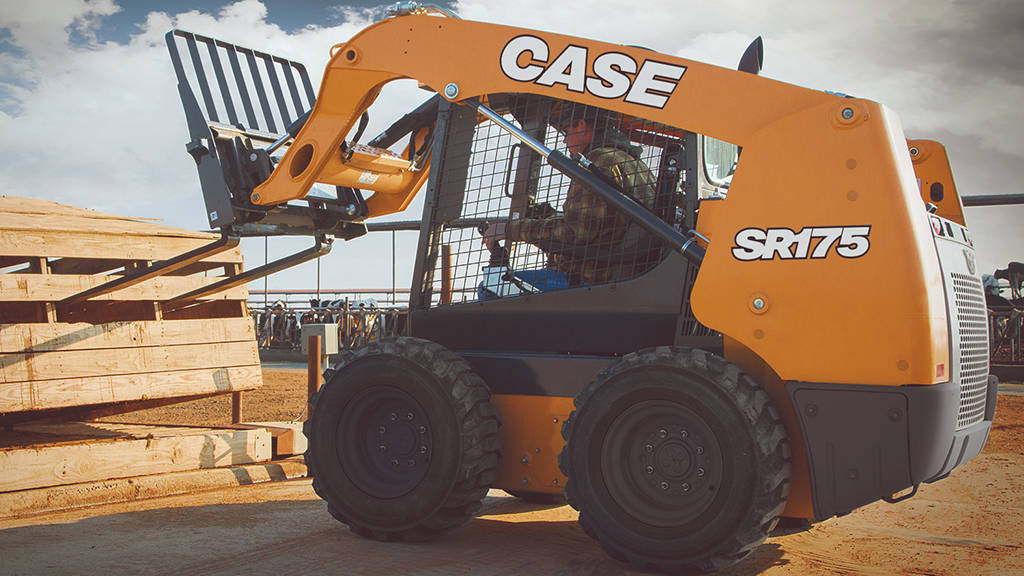

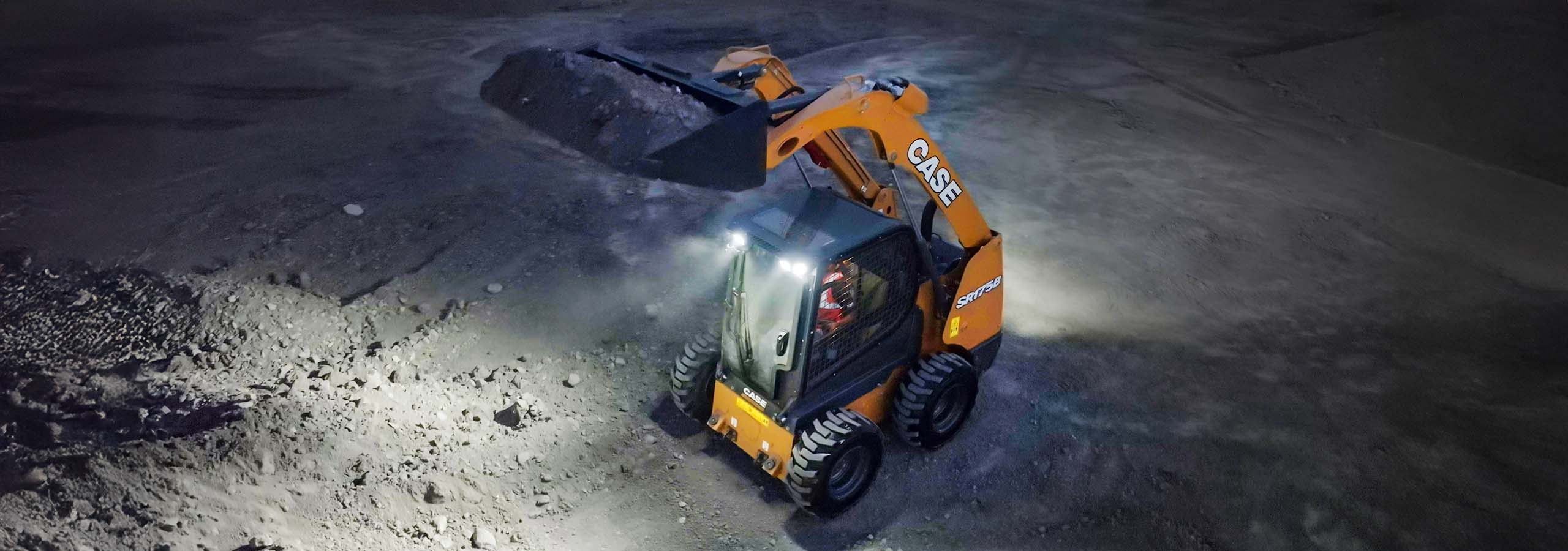

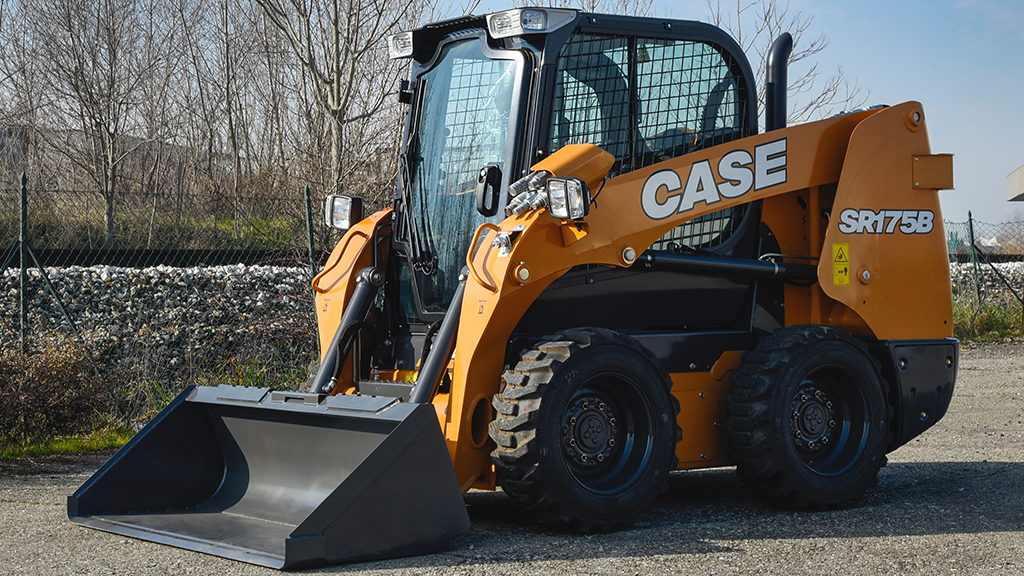

PERKINS CASE SR175B Skid Steer Loader
About this skid steer
This PERKINS 404D-22 is listed by AHS Group at NSW.
As listed, it has an operating weight of 2,881 kg.
AHS Group has not published a price for this skid steer — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | PERKINS |
| Model | 404D-22 |
| Condition | Used |
| Name | SR175B |
| Overall Height w/ LPE Bkt | 4,121 mm |
| Bucket Hinge Pin | 3,099 mm |
| Top Of ROPS | 1,974 mm |
| Bottom of Bkt Fully Raised | 2,925 mm |
| Length w/o Attachment | 2,685 mm |
| Length w/ LPE Bkt | 3,538 mm |
| Dump Angle | 39.6 ° |
| Dump Height w/ LPE Bkt | 2,322 mm |
| Dump Reach w/ LPE Bkt | 721 mm |
| Max Rollback at Ground | 31.6 ° |
| Max Rollback Fully Raised | 98.6 ° |
| Wheelbase | 1,128 mm |
| Ground Clearance | 178 mm |
| Angle of Departure | 23 ° |
| Rear Axle to Bumper | 924 mm |
| Overall Width (Spec Tyre) | 1,642 mm |
| Rated Operating Capacity 50% | 790 kg |
| Tipping Load | 1,588 kg |
| Lift Cylinder Breakout Force | 16.9 kN |
| Bucket Cylinder Breakout Force | 32.3 kN |
| Engine Brand | PERKINS |
| Engine Model | 404D-22 |
| Displacement | 24.9 cc |
| Horsepower Gross | 44.7 kW (59.9 hp) |
| Peak torque | 171 N·m |
| Low Range | 12.7 Km/h |
| High Range (Optional) | 18 Km/h |
| Pump flow 100% | 72 Lpm |
| Operating Weight | 2,881 kg |
| Shipping Weight | 2,705 kg |
| Fuel Tank | 75.7 L |
| Location | NSW |
| Category | Skid Steers |
Learn more about the CASE SR175B radial lift skid steer loader. Featuring a 44.7 kW engine, a 790-kg operating capacity and a 32.3 kN bucket breakout force. Full description on the dealer's site →
