About this machine
This Stack Fold Planters is listed by AHS Group at NSW.
AHS Group has not published a price for this machine — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | Stack |
| Model | Fold Planters |
| Condition | Used |
| Name | PL5200-IB |
| Mounting | Fully 3‐Point |
| Frame Type | Stack‐fold |
| Working Width | 11,810 mm |
| No. of Rows | 12 |
| No. of Rows (Twin Row configuration) | 24 |
| Row Spacing | 910, 970, or 1020 mm |
| On Row Hopper Capacity (Single Row) | 106 L |
| On Row Hopper Capacity (Twin Row) | 56 L |
| Bulk Fill Hopper Capacity | 1,762 L |
| Transport Width | 7,400 mm |
| Length Max. | 3,930 mm |
| Transport Height | 3,940 mm |
| Weight (Base Config. Single Row) | 6,300 kg |
| Weight (Base Config. Twin Row) | 8,664 kg |
| Recommended Tractor Horsepower | 260-325 kg |
| Hitch (three point linkage) | Cat 4 |
| Wing Flex Range (up & down) | 15 ° |
| Gauge Wheel Size | 7.60‐15 6‐PLY Lug |

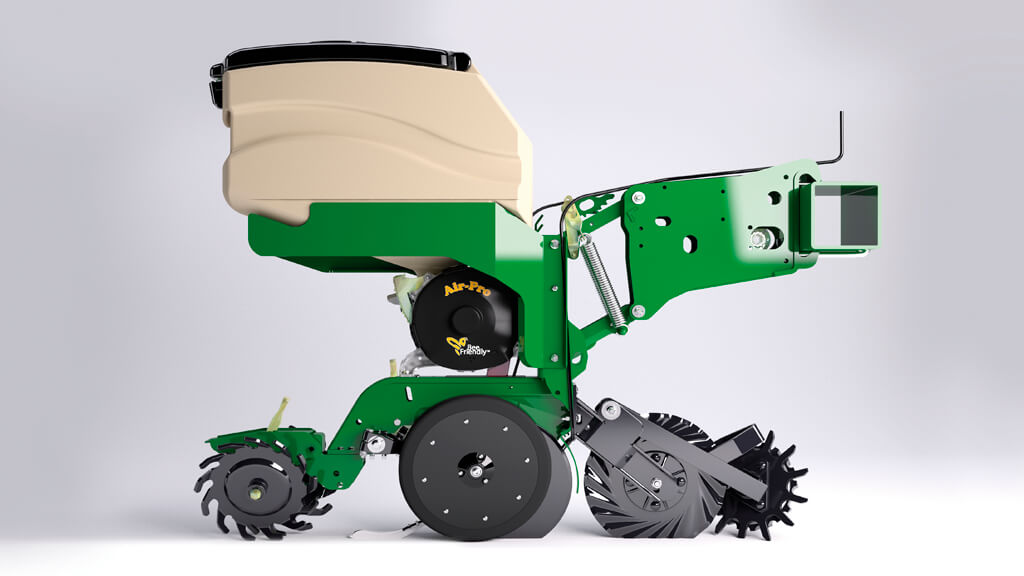

| Opener | 5000 Series |
| Opener Blade Size | 381 mm |
| Opener Travel | 254 mm |
| Opener Depth Min. | 0 mm |
| Opener Depth Max. | 90 mm |
| Opener Down Pressure Min. | 159 kg |
| Opener Down Pressure Max. | 245 kg |
| Air‐Pro® Metering and Fan | done |
| Opener Blades with 1/2" Leading Edge | done |
| Seals on Opener Disc Bearings | 205 Triple Lip |
| Blade Separator | Hardened Cast with Integrated Liquid Fert. Tube |
| Clear Shot Seed Tubes | done |
| 1" x 12" Double‐V Press Wheel | done |
| Gauge Wheel Scrapers | done |
| Unit Mounted 15" Turbo Coulters | done |
| Hitch | Cat. 3W‐4N |
| Wing Flex | done |
| Seed Firmer | Keeton |
| Spoked Row Unit Gauge Wheel | 4" X 16" |
| Topcon XD + Monitor | done |
| Location | NSW |
| Category | Seeders |

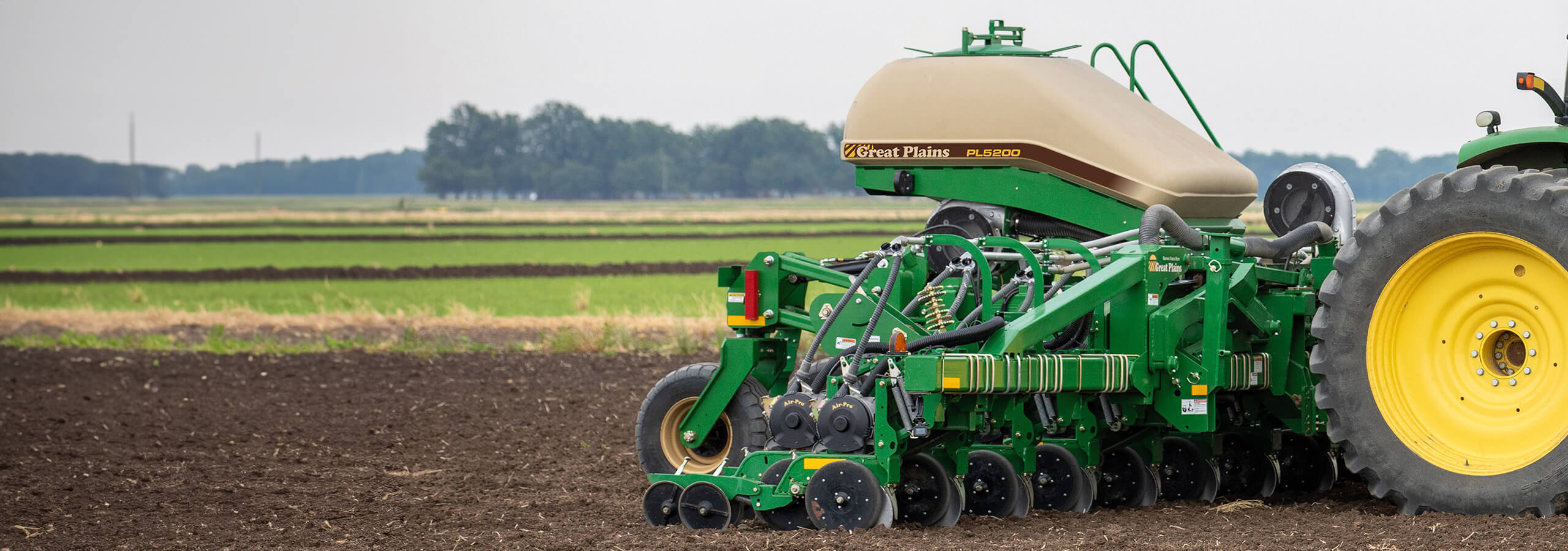

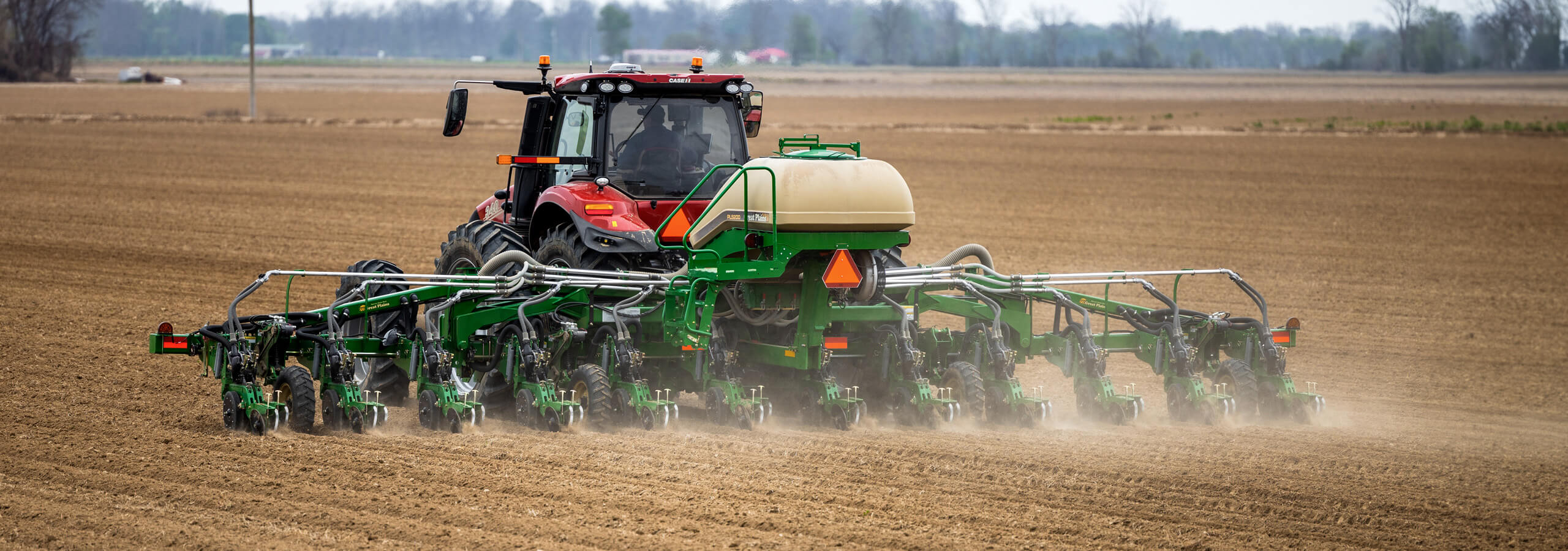

The Great Plains PL5200 is a mounted stack-fold planter that excels in wide-row applications. This 12-row system can accommodate a variety of crops and is available in 914mm, 965mm… Full description on the dealer's site →
