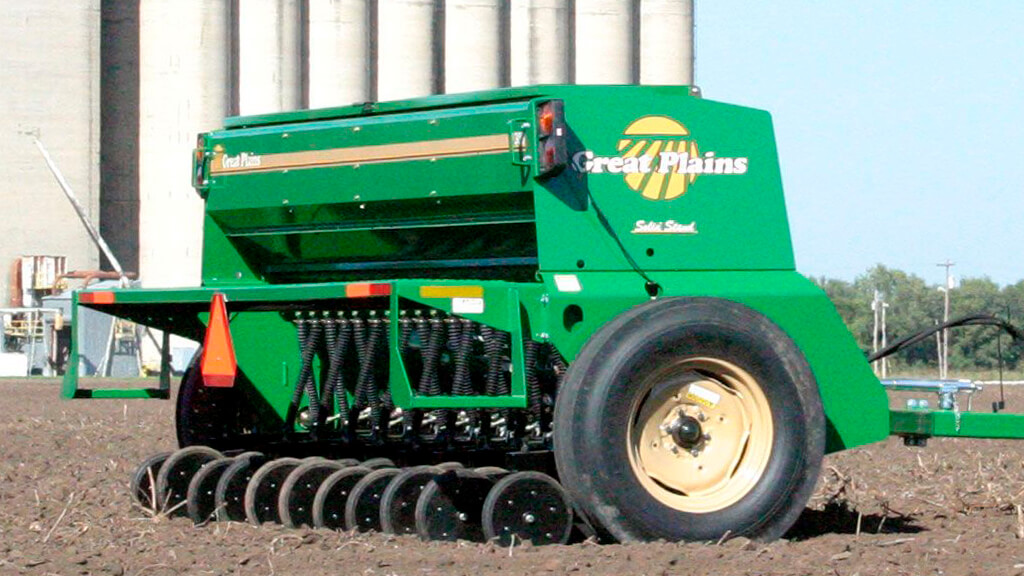

New11Trailed Min-Till Drills
AHS Group·NSW
4 photos supplied by AHS Group and displayed from their website. See the original listing →
About this machine
This Trailed Min-Till Drills is listed by AHS Group at NSW.
AHS Group has not published a price for this machine — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | Trailed |
| Model | Min-Till Drills |
| Condition | Used |
| Name | 800-1506 |
| Row Spacing | 152 mm |
| Number of Rows | 15 |
| Tyre Size | 700-15LT 8-Ply |
| Weight Approx. | 1,170 kg |
| Working Width | 2,286 mm |
| Transport Width | 2,960 mm |
| Length (transport) | 3,660 mm |
| Clearance (transport) | 229 mm |
| Height (transport) | 1,630 mm |
| Double Disk Opener Diameter | 343 mm |
| Double Disk Opener Thickness | 4 mm |
| Opener Travel | 203 mm |
| Opener Depth Min. | 0 mm |
| Opener Depth Max. | 89 mm |
| Opener Down Pressure Min. | 40.8 kg |
| Opener Down Pressure Max. | 81.6 kg |
| Main Box Capacity | 1,024 L |
| Small Seed Box Capacity | 67 L |
| Fertiliser Box Capacity | 227 L |
| Primary Design | Min-Till |
| Tractor Attachment | Drawbar |
| Engine Horsepower min. | 45 hp |

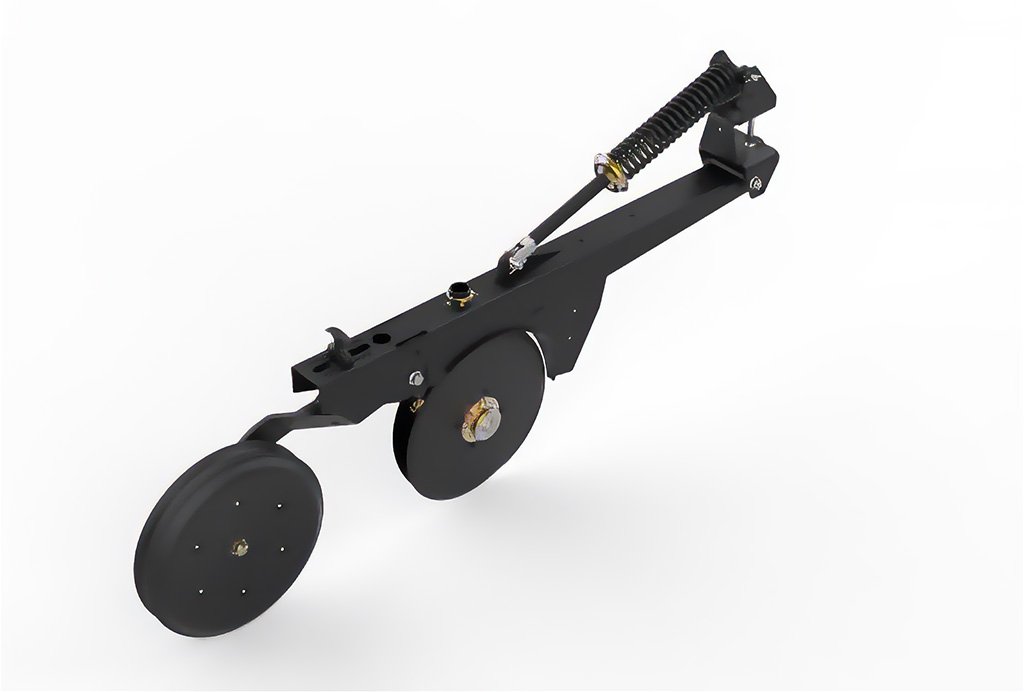

| Opener Series | 00 Series |
| 4 Speed Gearbox | done |
| Electronic Acre Meter | done |
| Walk Board & Ladder | done |
| Walk Board Handrail | done |
| Light Kit Package | done |
| Lock-out Hub | done |
| Weather Proof Lids | done |
| V-bottom Dividers | done |
| Seed Box Level Indicator | done |
| Folding Tongue | done |
| Jack Stand | done |
| Cylinder Kit | done |
| Calibration Crank | done |
| Safety Chain | done |
| T-handle Depth Control | done |
| Press Wheel | 51 x 330 mm |
| Adjustable Press Wheel Scrapers | done |
| Reversible Fertiliser Partition | close |
| Seed Cup w/ powdered Metal Flutes | done |
| Main Seedbox Agitator | done |
| Seed Cup Calibration Tool | done |
| Irwin Hose Clamp Pliers | done |
| Seed Cup Plugs | Main Seed Box | done |
| Seed Cup Plugs | Small Seed Box | done |
| Keeton Seed Firmers | done |
| Location | NSW |
| Category | Seeders |
Great Plains Min-Till Drills deliver big drill performance in compact machines. These units are ideal for minimum-till conditions thanks to their rugged construction and hydraulica… Full description on the dealer's site →
