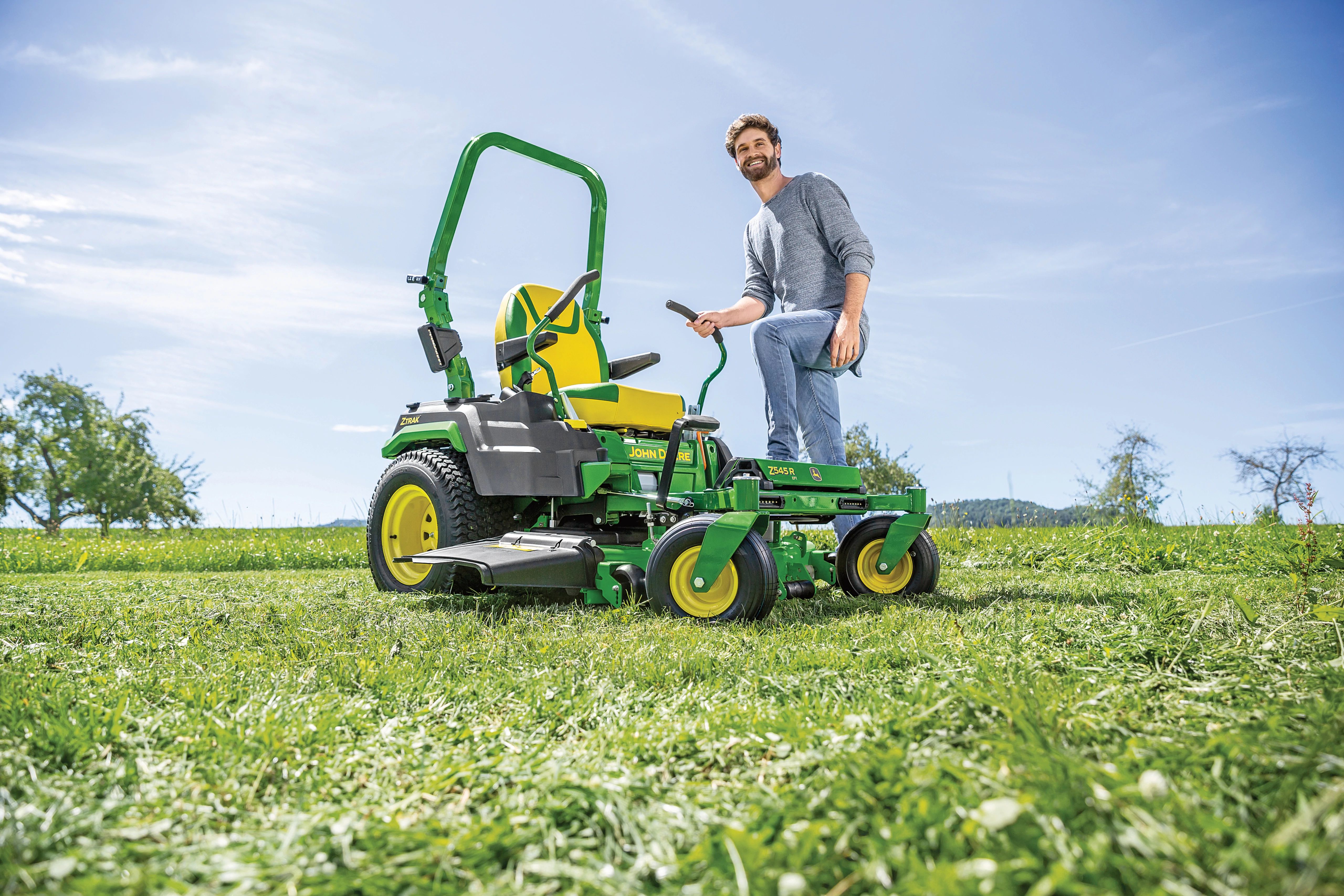

New12John Deere Z545R Residential ZTrak™ Zero Turn Mower
RDO Equipment·QLD
10 photos supplied by RDO Equipment and displayed from their website. See the original listing →
About this machine
This Z545R ZTrak Z545R (Model year 2022) is listed by RDO Equipment at QLD.
RDO Equipment has not published a price for this machine — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on RDO Equipment's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | Z545R |
| Model | ZTrak Z545R (Model year 2022) |
| Condition | Used |
| Specifications: Model | ZTrak Z545R (Model year 2022) |
| Key Specs Engine power | 25 hp 18.6 kW |
| Engine model number | HTR EFI/ETC |
| Forward speed | 0-9 mph 0-14.5 km/h |
| Front caster tires | 13x6.5-6 |
| Drive tires | 23x10.5-12 |
| Seat back height | High back with armrests and ComfortGlide™, 22.5 in. 57.1 cm |
| Engine Power | 25 hp 18.6 kW |
| Displacement | 44.2 cu in. 724 cc |
| Type | Overhead valve |
| Cylinders | V-twin |
| Choke/speed control | Separate control levers |
| Cooling method | Air |
| Model number | HTR EFI/ETC |
| Lubrication | Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L |
| Battery | 12 V 300 CCA |
| Fuel tank capacity | 4.5 U.S. gal. 17 L |
| Fuel gauge | Electric gauge and fuel level sight line |
| Chassis Frame | Heavy-duty frame tubing |
| Primer/paint | E-coat/powder |
| Service interval decal | Yes |
| Cup holder | Yes |
| Maximum towing capacity | 250 lb 113 kg |
| Front caster bearings | Sealed ball bearings |
| Hour meter | Yes |
| Storage compartment | Yes and covered |
| Seat Seat back height | High back with armrests and ComfortGlide, 22.5 in. 57.1 cm |
| Fore-aft adjustment | While seated, 3 in. 7.6 cm |
| Seat suspension | Two springs and ComfortGlide |
| Lift system Type | Foot lift |
| Mower cut height | 1-4 in. 2.5-10.2 cm |
| Cut height increments | 0.25 in. 0.64 cm |
| Preset cut height | Yes |
| Mower deck Type | High-capacity side discharge |
| Mower deck material | 9 gauge 0.150 in. 3.8 mm |
| Mower drive system | V-belt |
| Buyer's notes Note 1 | Mower wash port makes cleaning the deck easier |
| Note 2 | Flip-up foot platform for easy service access |
| Note 3 | 18-position adjustable motion-control levers |
| Dimensions Height | ROPS in folded position: 49.2 in. 1250 mm ROPS in raised position: 71.7 in. 1821 mm |
| Overall length | 81.9 in. 2080 mm |
| Wheelbase | 49.2 in. 1250 mm |
| Width with mower | 48 HC: 62.4 in. 1585 mm 54 HC: 68.3 in. 1735 mm 60 HC: 73.5 in. 1867 mm |
| Width without mower | 48.7 in. 1237 mm |
| Drive train Dual hydros | Tuff Torq TZT7-M with 1-in. (2.5-cm) axles |
| Travel speed Forward speed | 0-9 mph 0-14.5 km/h |
| Reverse speed | 0-4.5 mph 0-7.2 km/h |
| Speed and direction control | Twin premium levers |
| Control adjustment | 2-height/9-fore-aft, 18 positions |
| Power take-off (PTO) Type | Electric, 125 lb-ft 169.5 Nm |
| Drive | V-belt |
| Slope operating limit | 15 degrees, 10 degrees with an MCS |
| Operator presence system | Yes |
| Park brake interlock | Yes |
| Operator video | Yes |
| Optional attachments Mulching system | Optional MulchControl attachment, 54 in. 137 cm Optional MulchControl kit, 60 in. 152 cm |
| Rubber floor mat | Foot platform and toe board |
| Sun shade | Optional |
| Mounted sprayer | No |
| Storage cover | Yes |
| Light kit | 4-point LED Light kit |
| Material collection system | Power Flow rear bagger, 6.5 bu 230 L Not available on 60HC |
| Location | QLD |
| Category | Mowers |
The John Deere Z545R Zero-Turn Mower features a powerful EFI engine with electronic throttle control for instant power delivery and a high capacity mower deck. Full description on the dealer's site →
