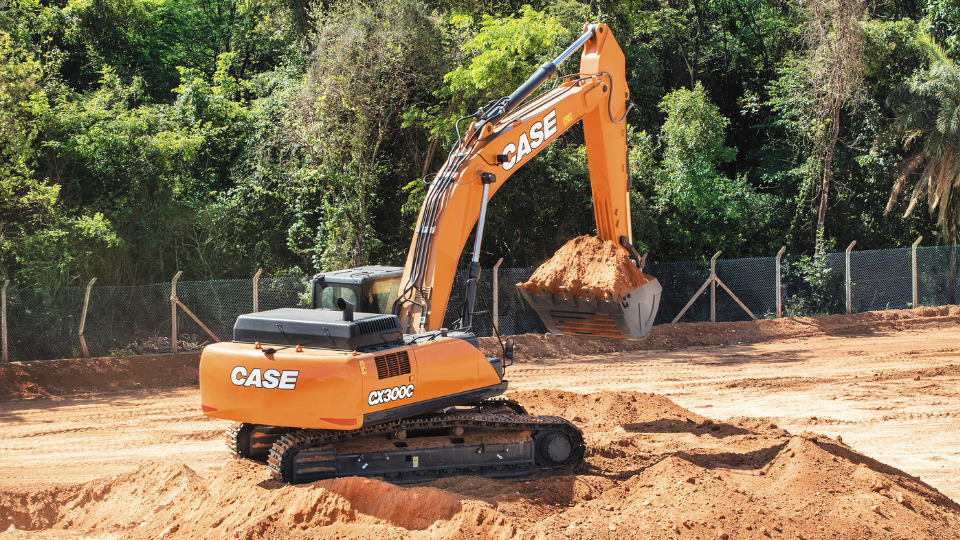

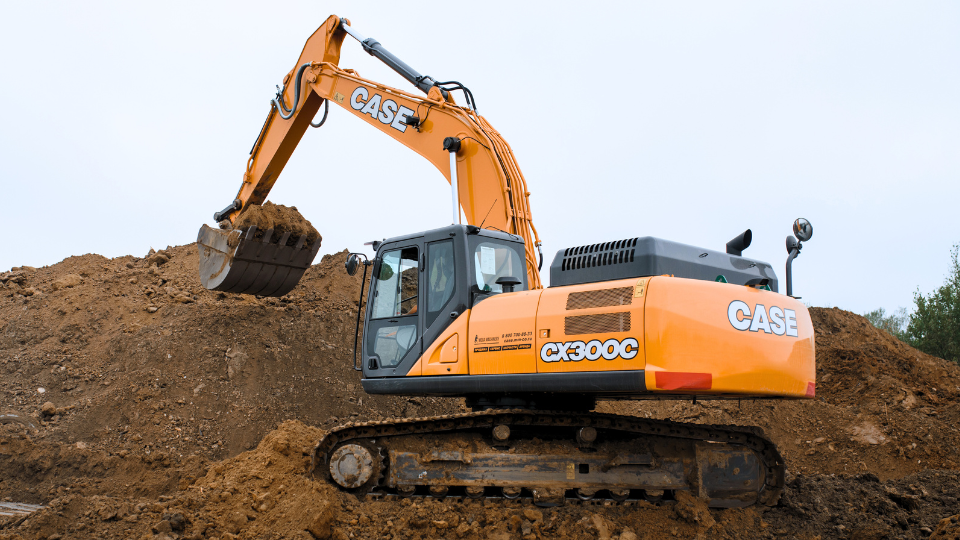

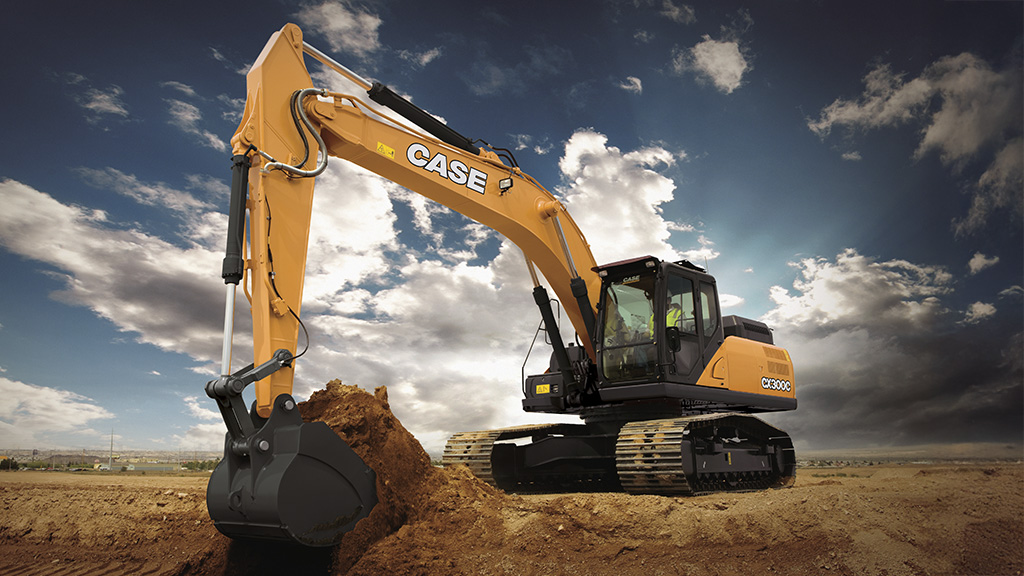

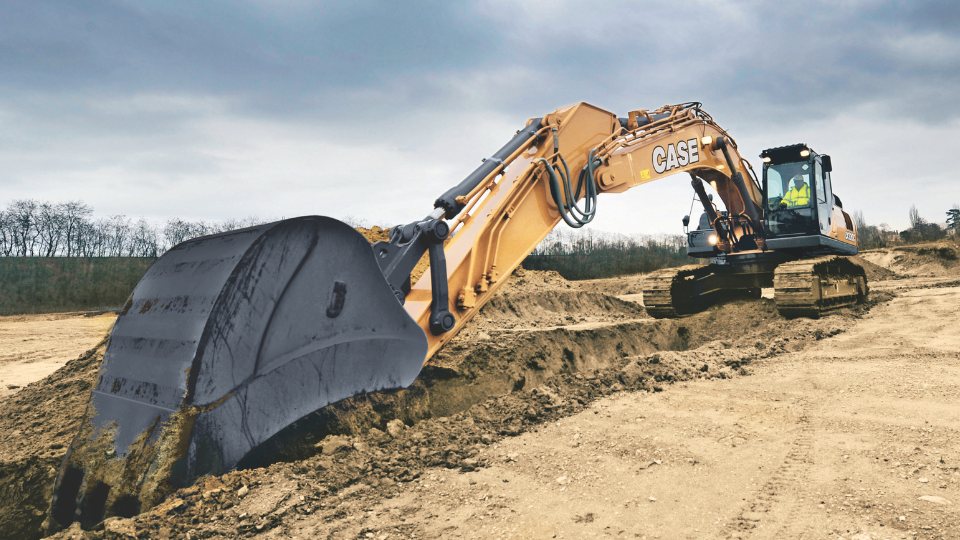

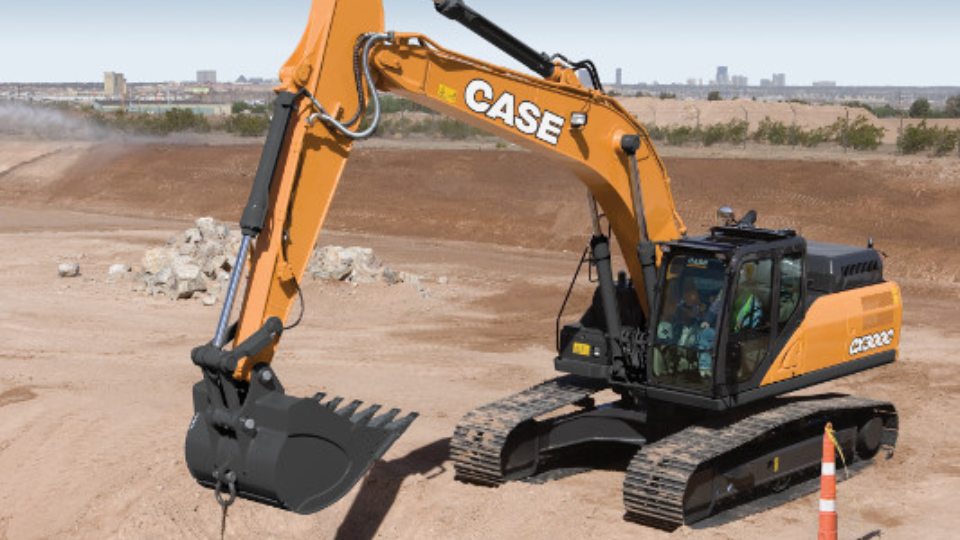

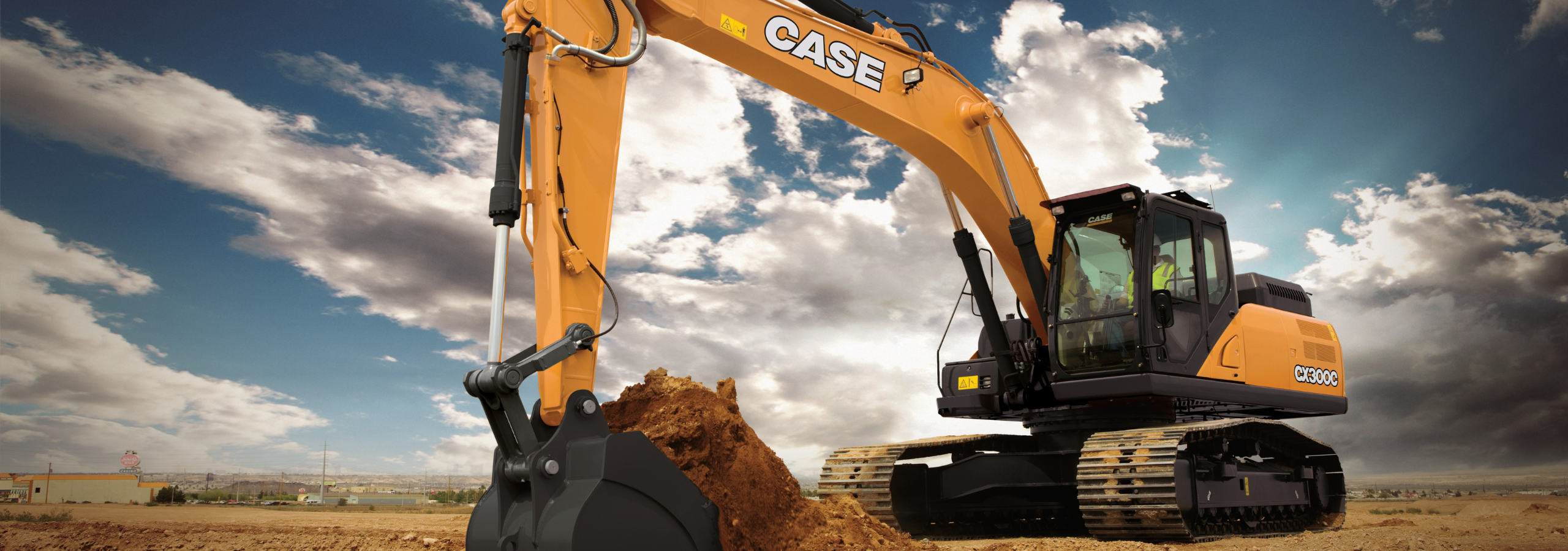

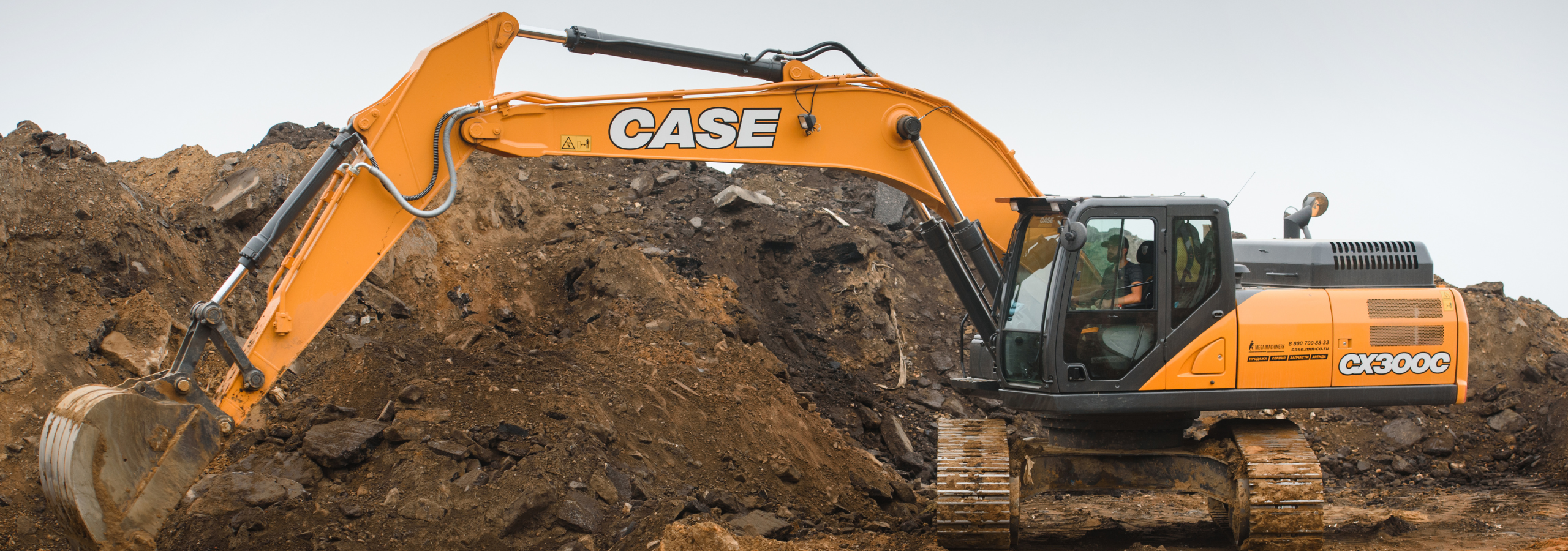

New2CASE CX300C Excavator | 30 Tonne Power
AHS Group·NSW
7 photos supplied by AHS Group and displayed from their website. See the original listing →
About this excavator
This Case ISUZU GH-6HK1X is listed by AHS Group at NSW.
As listed, it has an operating weight of 30,000 kg.
AHS Group has not published a price for this excavator — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | Case |
| Model | ISUZU GH-6HK1X |
| Condition | Used |
| Name | CX300C |
| Model | ISUZU GH-6HK1X |
| Bore/Stroke | 115 × 125 mm |
| Displacement | 7.79 l |
| Horsepower | 212 kW (284.3 hp) |
| Maximum torque | 1,020 Nm |
| Max oil flow | 2 × 270 l/min |
| Type | 2 variable displacement axial piston pumps with regulating system |
| Boom/Arm/Bucket circuit | 34.3 MPa |
| Boom/Arm/Bucket (with Power Boost) | 37.3 MPa |
| Swing circuit | 30.4 MPa |
| Travel circuit | 34.3 MPa |
| Maximum swing speed | 10 min-¹ |
| Swing torque | 92,100 Nm |
| Suction filter | 105 μm |
| Return filter | 6 μm |
| Pilot line filter | 8 μm |
| Travel motor | Variable displacement axial piston motor |
| Max travel speed | 5.7 km/h |
| Low travel speed | 3.3 km/h |
| Gradeability | 35° (70%) |
| Drawbar pull | 233 kN |
| Alternator | 50 Amp |
| Starter motor | 5 kW (6.7 hp) |
| Battery | 2 × 12 V 128 Ah / 5 HR |
| Number of track rollers (each side) | 9 |
| Number of shoes (each side) | 50 |
| Type of shoe | Triple grouser shoe |
| Fuel tank | 450 L |
| Hydraulic system | 300 L |
| Cooling system | 32.7 L |
| Engine Crank Case | 41 L |
| Operating Weight | 30,000 kg |
| Location | NSW |
| Category | Excavators |
The CASE CX300C delivers powerful 30-tonne performance with advanced hydraulics, a 6-cylinder ISUZU Tier 3 engine, and exceptional fuel efficiency. Built for heavy-duty civil and c… Full description on the dealer's site →
Comparable listings in our index
4 listings for Case, ranging $79,500 to $179,990, median $97,500. These are dealer asking prices, not achieved sale prices.
