New2CASE CX58D Excavator
AHS Group·NSW
3 photos supplied by AHS Group and displayed from their website. See the original listing →
About this excavator

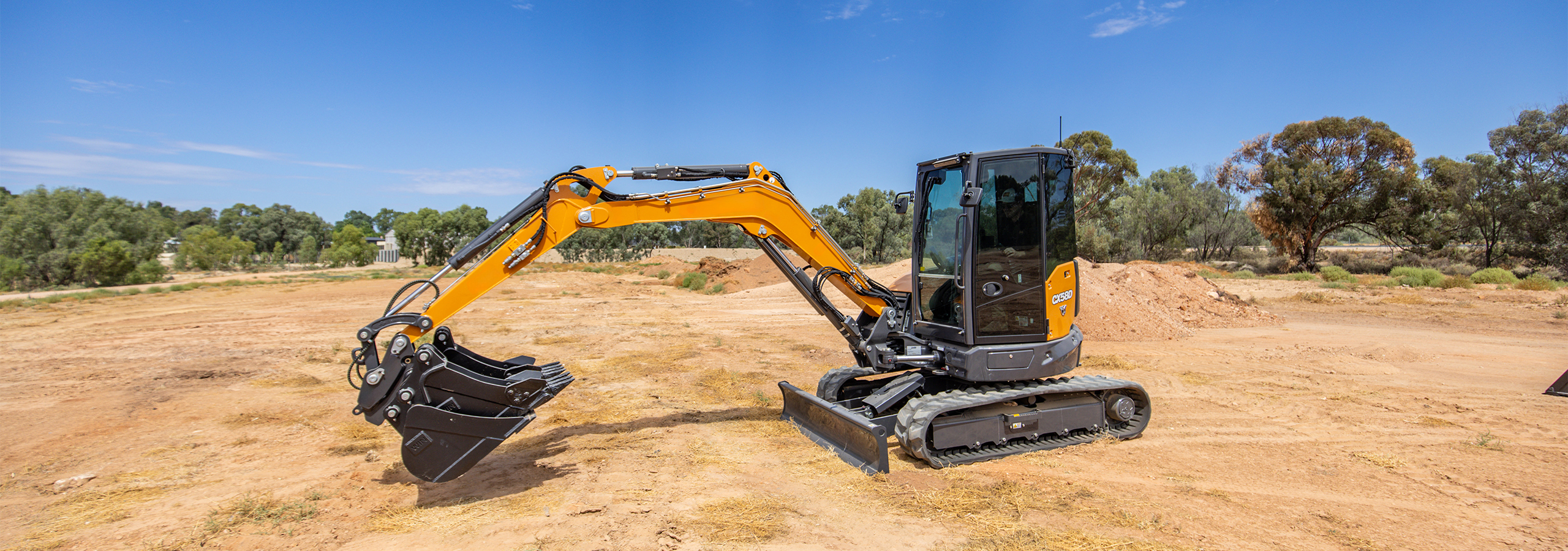

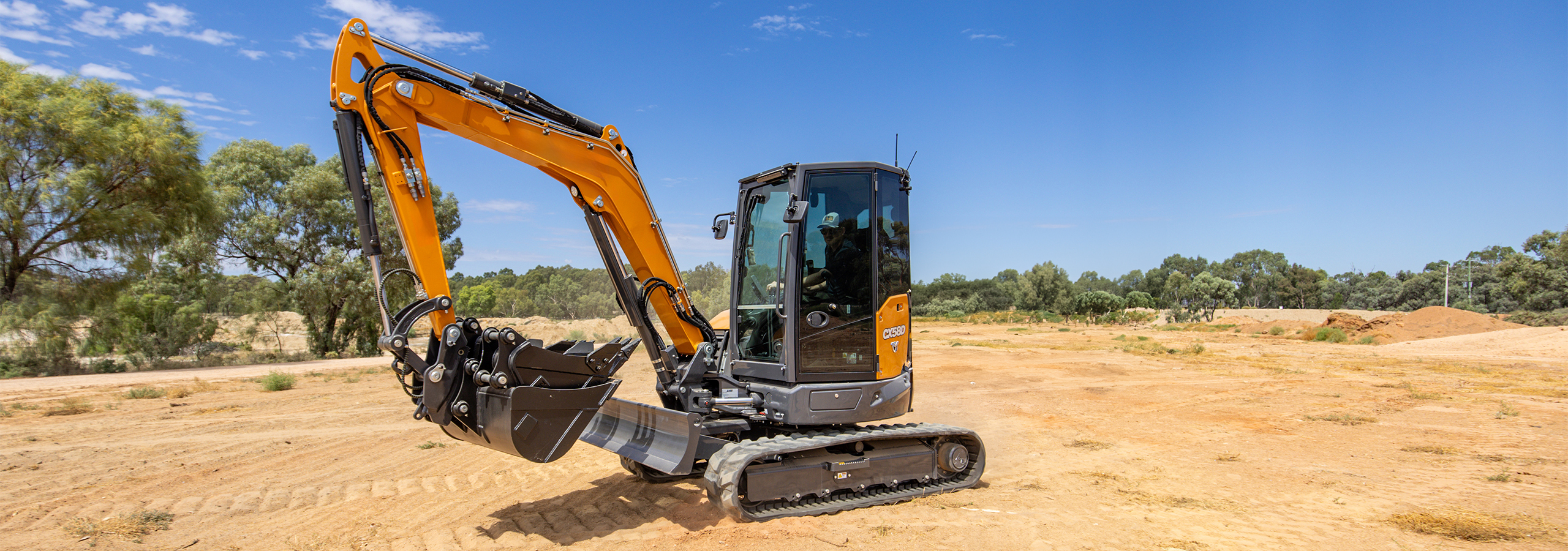

A Case CX58D Excavator offered by AHS Group in NSW.
AHS Group has not published a price for this excavator — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | Case |
| Model | CX58D Excavator |
| Condition | Used |
| Name | CASE CX35D |
| Max. Power | 24.4 HP |
| Displacement | 1,647 cm³ |
| Number of cylinders | 3 n° |
| Cooling | Liquid |
| Consumption | 3.5 l/h |
| Alternator | 12 V |
| Battery | 12 V |
| Pump type | 1 LS variable pump |
| Pump displacement | 48 cm³ |
| Pump capacity | 101 l/min |
| Max. circuit calibration pressure bar | 260 |
| Auxiliary system (max pressure): AUX 1 | single or double effect 50 - 200 left / 250 right l/min (bar) |
| Auxiliary system (max pressure): AUX 2 | double effect - optional 32/20 - 250 l/min (bar) |
| Auxiliary system (max pressure): AUX 3 | double effect - optional 32/20 - 250 l/min (bar) |
| Circuit Type | LS closed center system with Flow Sharing control valve |
| Travelling speed (AUTO TWO SPEED) | 1st : 0 ÷ 2.7 / 2nd : 0 ÷ 4.3 km/h |
| Slew speed | 10.5 RPM |
| Dozer blade | pilot lever |
| Auxiliary system: AUX 1 | electroproportional switch on right joystick |
| Auxiliary system: AUX 2 | electroproportional switch on left joystick |
| Boom swing | electroproportional switch on left joystick |
| Transport weight with canopy | - kg |
| Transport weight with cab | 3,330 Kg |
| Operating weight with canopy | - Kg |
| Operating weight with cab | 3,480 Kg |
| Fuel tank | 49 Litres |
| Hydraulic oil tank | 33.5 Litres |
| Hydraulic circuit capacity | 54 Litres |
| Cooling system capacity | 7.5 Litres |
| Engine oil | 7 Litres |
| Location | NSW |
| Category | Excavators |
Take on larger jobs with the 5.5-tonne CASE CX58D. Featuring a powerful 60.2 HP Kubota engine, zero tail-swing agility, and an industry-leading 129 L/min hydraulic pump capacity, t… Full description on the dealer's site →
