Kubota KX040-4 Excavator | Precision & Performance
AHS Group·NSW
7 photos supplied by AHS Group and displayed from their website. See the original listing →
About this excavator
AHS Group has this Kubota Kubota D1803-CR-TE4 available at NSW.
AHS Group has not published a price for this excavator — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | Kubota |
| Model | Kubota D1803-CR-TE4 |
| Condition | Used |
| Name | KX040-4 |
| Engine Type | Tier 4 Compliant |
| Fuel Type | Diesel |
| Cylinders | 3 |
| Engine Model | Kubota D1803-CR-TE4 |
| Engine Net | 38.9 HP |
| Engine Gross | 40.4 hp |
| Displacement | 1,826 cc |
| Rated Speed | 2,200 rpm |
| Max. Traction Force | 4,420 kgf |
| Tumbler Distance | 1,710 mm |
| Crawler Length | 2,175 mm |
| Shoe Width | 350 mm |
| Ground Contact Pressure - Cab (Per cm2) | 0.33 kgf |
| Hydraulic Pump Capacity | 92.4 l/min |
| Aux Hydraulic Flow - AUX1 | 65 l/min |
| Aux Hydraulic Flow - AUX2 | 37 l/min |
| Max. Breakout Force - Bucket | 3,315 kgf |
| Max. Breakout Force - Arm | 1,865 kgf |
| Swing System | Conventional Swing |
| Unit Swing Speed | 9.2 rpm |
| Boom Swing Angle Left | 70 degree |
| Boom Swing Angle Right | 55 degree |
| Low | 2.9 km/h |
| High | 5 km/h |
| Length | 5,085 mm |
| Width | 1,700 mm |
| Height - Canopy | 2,485 mm |
| Height - Cab | 2,485 mm |
| Min. Ground Clearance | 330 mm |
| Operating Weight - Canopy | 4,185 kg |
| Operating Weight - Cab | 4,325 kg |
| Max. Blade Width | 1,700 mm |
| Blade Height | 350 mm |
| Max. Lift Above Ground | 400 mm |
| Max. Drop Below Ground | 405 mm |
| Blade Angle | N/A |
| Fuel Reservoir | 64 l |
| Hydraulic Oil Reservoir | 42 l |
| Hydraulic Oil System | 74 l |
| Operator Station | Canopy and Cab |
| Max. Digging Height | 5,335 mm |
| Max. Dumping Height | 3,900 mm |
| Max. Digging Depth | 3,420 mm |
| Max. Vertical Digging Depth | 2,255 mm |
| Max. Digging Radius At Ground | 5,410 mm |
| Max. Digging Radius | 5,540 mm |
| Min. Turning Radius - w/o Swing | 2,180 mm |
| Min. Turning Radius - Swing | 1,805 mm |
| Min. Tail Turning Radius | 1,300 mm |
| Location | NSW |
| Category | Excavators |

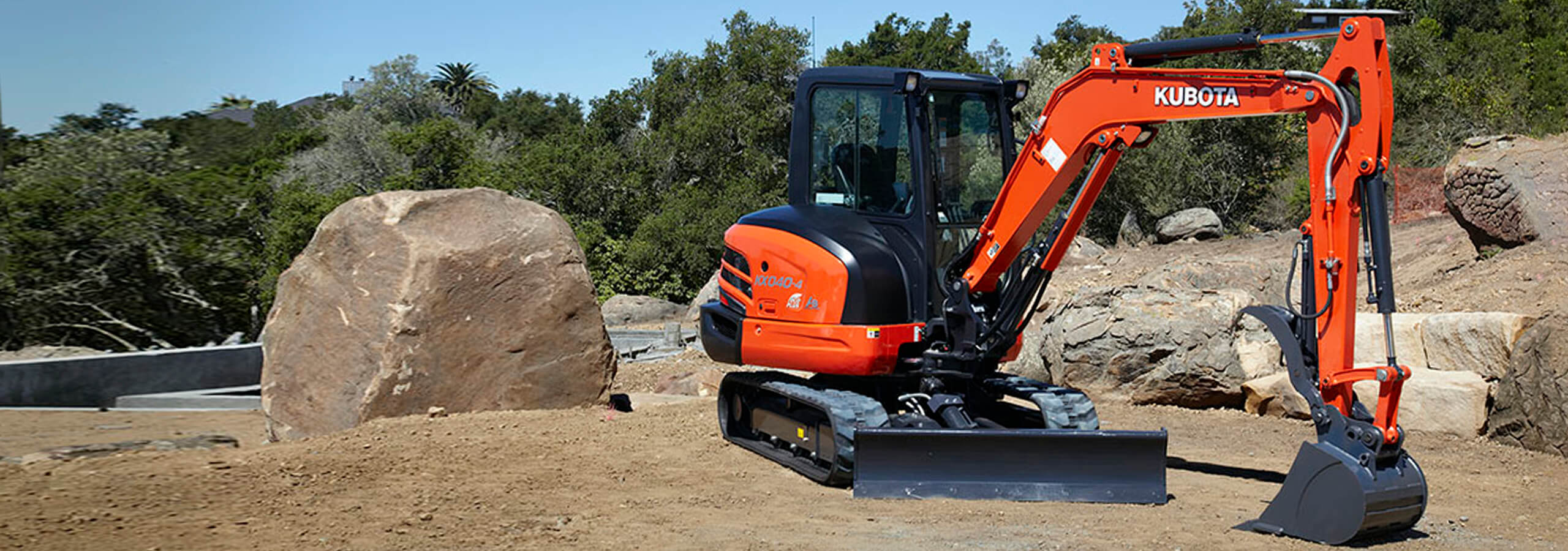

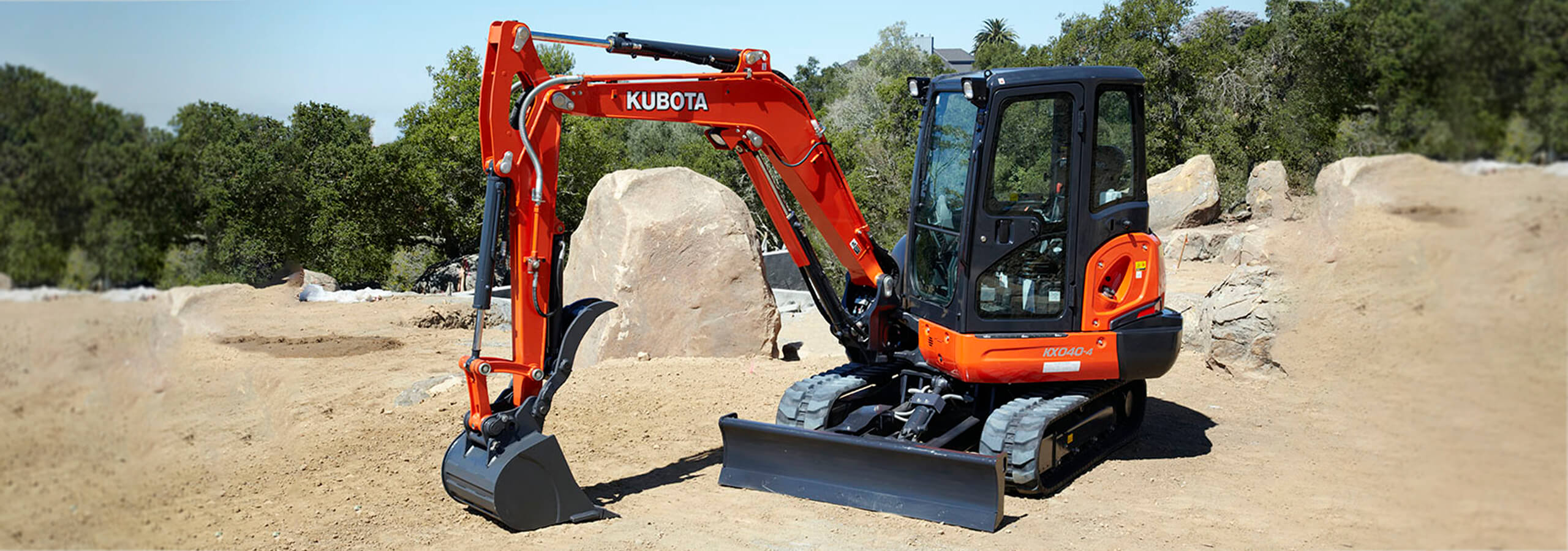

The Kubota KX040-4 compact excavator delivers outstanding power and control. Browse our Kubota excavators for sale and enhance your worksite efficiency. Full description on the dealer's site →
