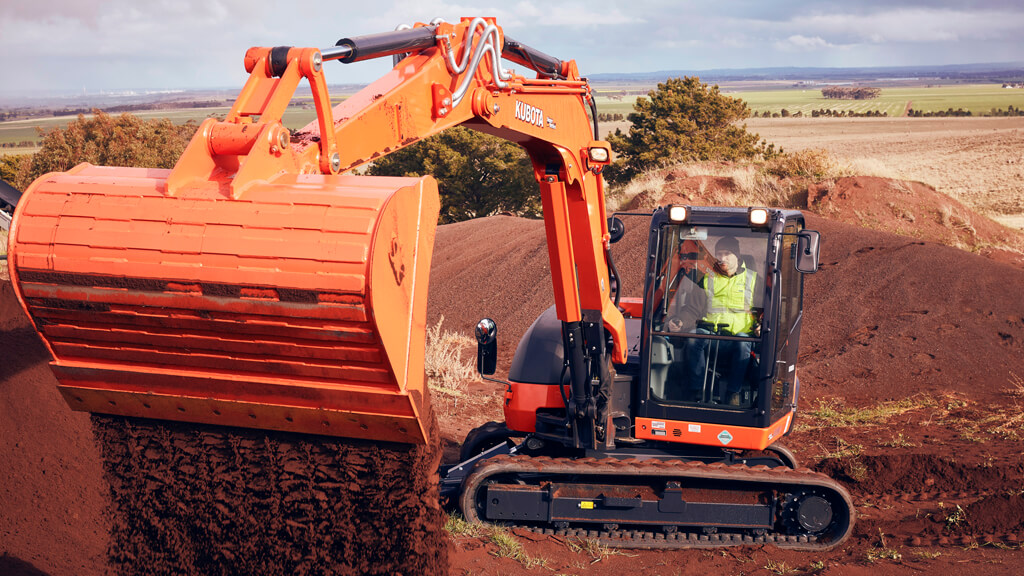

Used9Kubota KX080-3SGLA Excavator - Tasmac Tasmania
TASMAC
View details $558/wk finance*

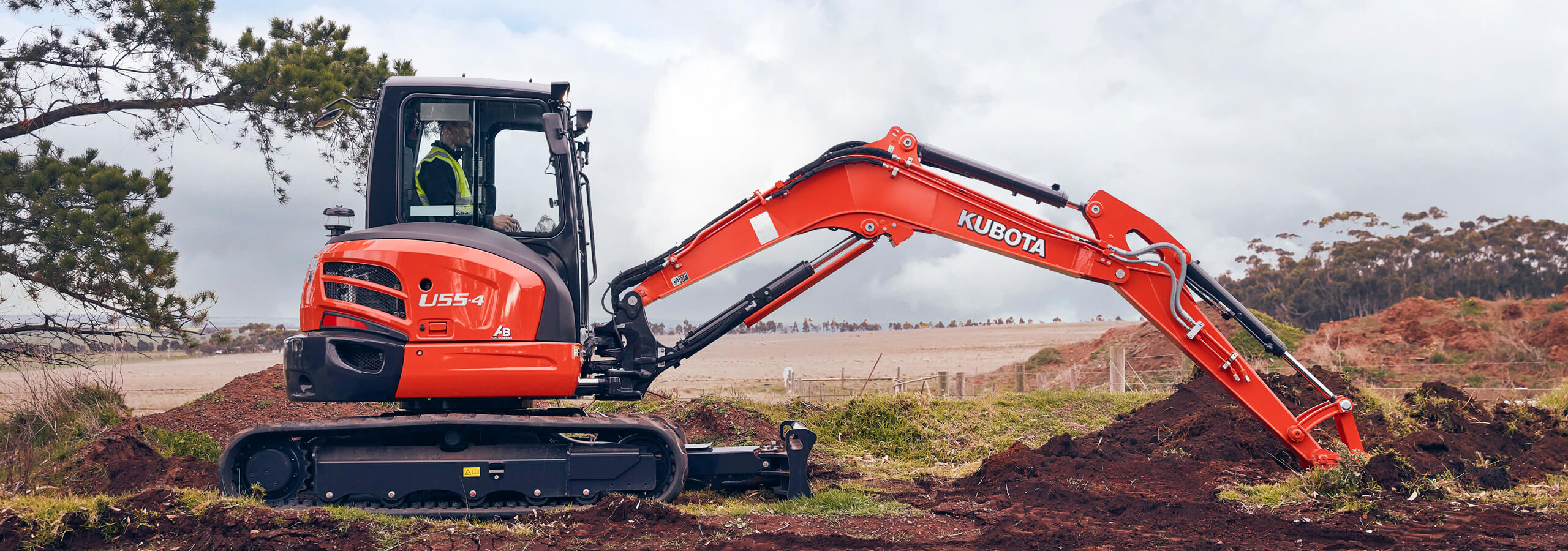

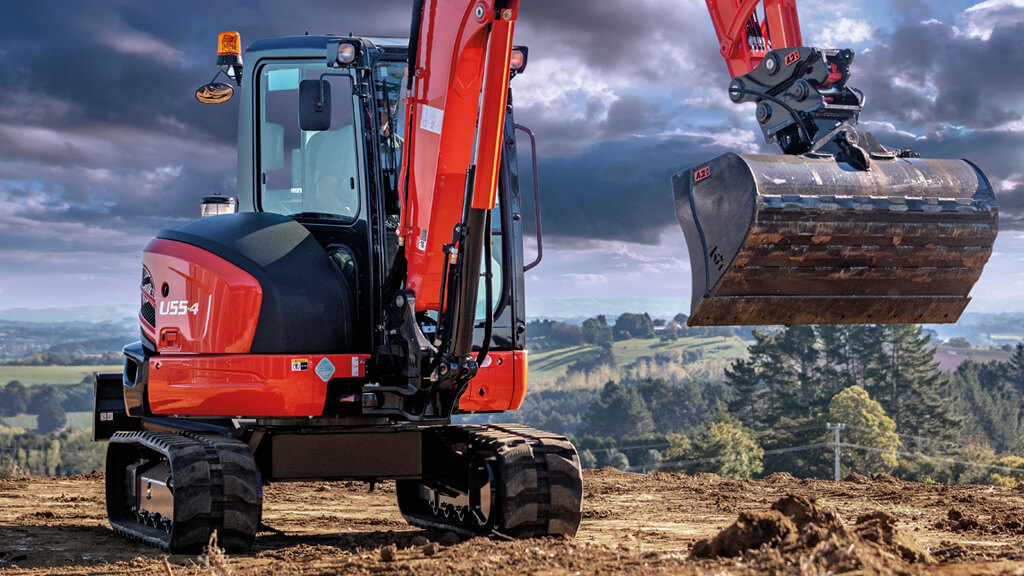

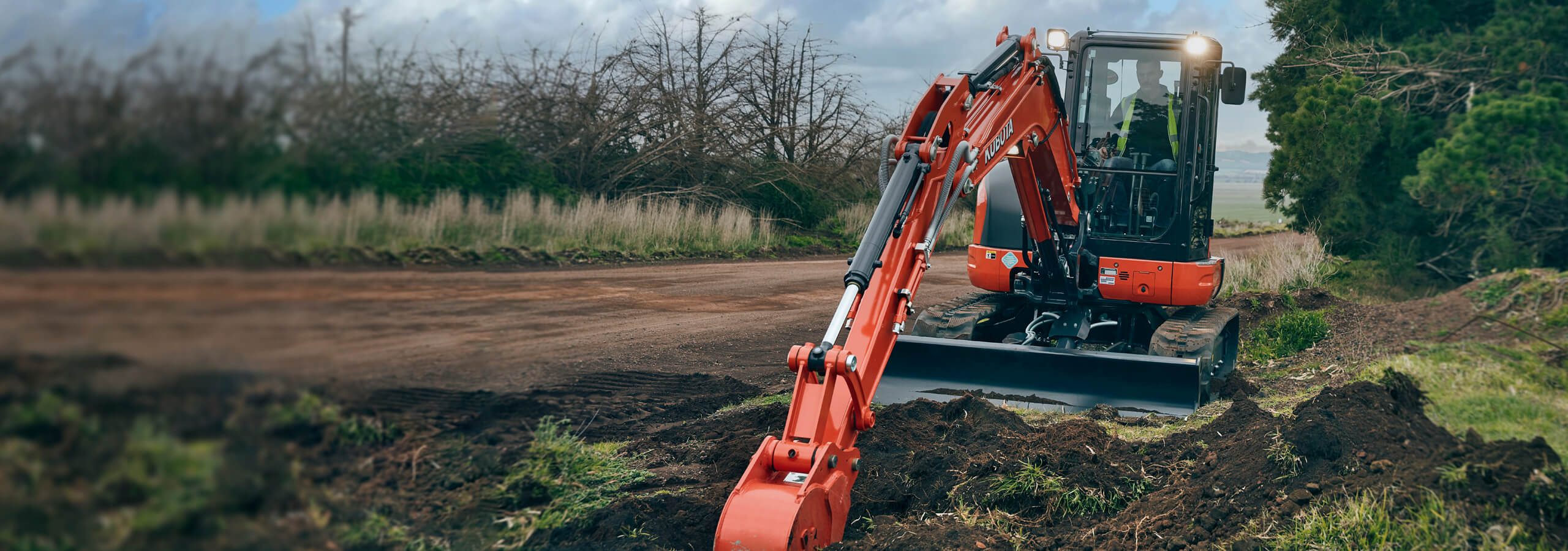

Kubota U55-4 Excavator | Compact & Versatile
AHS Group·NSW
6 photos supplied by AHS Group and displayed from their website. See the original listing →
About this excavator
AHS Group has this Kubota Kubota V2607-DI available at NSW.
AHS Group has not published a price for this excavator — it is listed as price on application, so you will need to contact them for a figure.
Full photos, the dealer's own description and any additional detail are on AHS Group's website. Specifications shown here are as published by the dealer and are not independently verified — confirm hours, condition and GST treatment before you commit.
Specifications
| Make | Kubota |
| Model | Kubota V2607-DI |
| Condition | Used |
| Name | U55-4 |
| Engine Type | Interim Tier 4 Emission Level |
| Fuel Type | Diesel |
| Cylinders | 4 |
| Engine Model | Kubota V2607-DI |
| Engine Net | 45.4 HP |
| Engine Gross | 47.6 HP |
| Displacement | 2,615 cc |
| Rated Speed | 2,200 rpm |
| Max. Traction Force | 6,567 kgf |
| Tumbler Distance | 1,990 mm |
| Crawler Length | 2,500 mm |
| Shoe Width | 400 mm |
| Ground Contact Pressure - Cab (Per cm2) | 0.311 kgf |
| Hydraulic Pump Capacity | 56.1 variable x2 / 37.0 Gear x 1 l/min |
| Aux Hydraulic Flow - AUX1 | 75 l/min |
| Aux Hydraulic Flow - AUX2 | 37 l/min |
| Max. Breakout Force - Bucket | 4,315 kgf |
| Max. Breakout Force - Arm | 2,770 kgf |
| Swing System | Zero Tail Swing |
| Unit Swing Speed | 9.3 rpm |
| Boom Swing Angle Left | 70 degree |
| Boom Swing Angle Right | 55 degree |
| Low | 2.8 km/h |
| High | 4.9 km/h |
| Length | 5,500 mm |
| Width | 1,960 mm |
| Height - Canopy | 2,550 mm |
| Height - Cab | 2,550 mm |
| Min. Ground Clearance | 310 mm |
| Operating Weight - Canopy | 5,380 kg |
| Operating Weight - Cab | 5,470 kg |
| Max. Blade Width | 1,960 mm |
| Blade Height | 410 mm |
| Max. Lift Above Ground | 440 mm |
| Max. Drop Below Ground | 405 mm |
| Blade Angle | N/A |
| Fuel Reservoir | 68 l |
| Hydraulic Oil Reservoir | 45 l |
| Hydraulic Oil System | 79 l |
| Engine Oil | 9 l |
| Operator Station | Canopy and Cab |
| Max. Digging Height | 5,665 mm |
| Max. Dumping Height | 4,005 mm |
| Max. Digging Depth | 3,630 mm |
| Max. Vertical Digging Depth | 2,830 mm |
| Max. Digging Radius At Ground | 5,960 mm |
| Max. Digging Radius | 6,105 mm |
| Min. Turning Radius - w/o Swing | 2,460 mm |
| Min. Turning Radius - Swing | 2,020 mm |
| Min. Tail Turning Radius | 1,045 mm |
| Location | NSW |
| Category | Excavators |
Boost productivity with the Kubota U55-4 excavator, offering power and agility for excavation jobs. Explore Kubota mini excavators for sale today! Full description on the dealer's site →
